TOP.SP.134.28.8

Only for thin material!

Article No.	Length	Weight	Price
TOP.SP.134.28.8.525	525 mm20.67 ''	12.00 kg26.46 lb
TOP.SP.134.28.8.495s	495 mm19.49 '' FA	11.30 kg24.91 lb

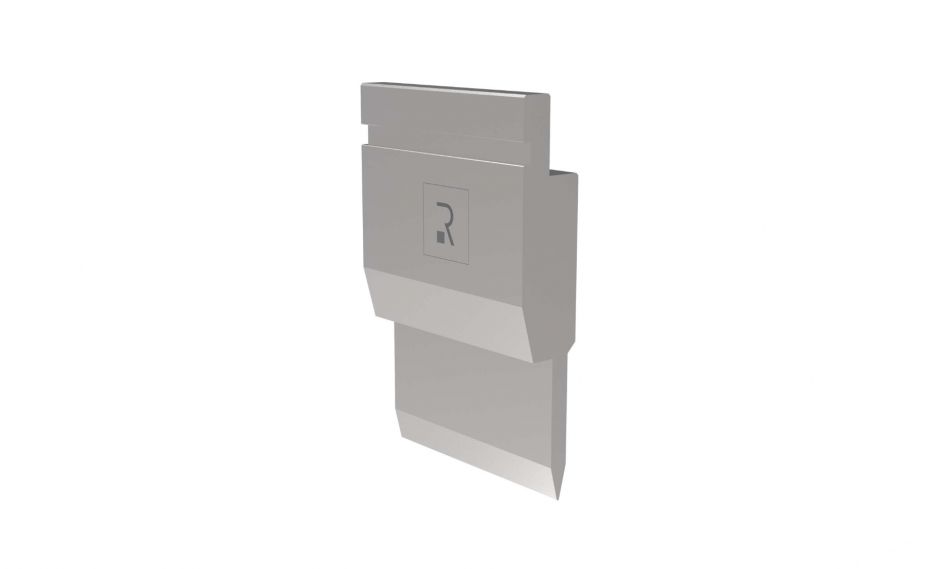

"Hemming tools R1 European type TOP Series with Working height=128mm, α=28°, Radius=0,6mm, Material=42Cr, Ma

Description
Features
Attachments

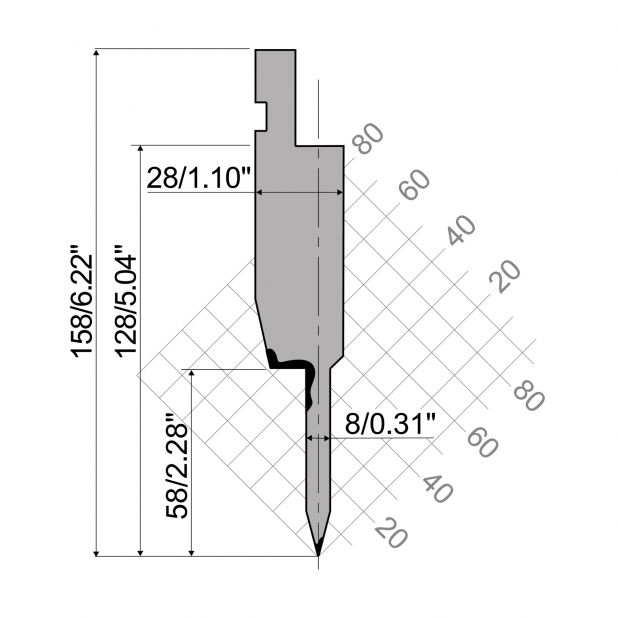

Hemming tools R1 European type TOP Series with working height=128mm/5.04", α= 28°, material=42Cr Max. Load=100Ton/mtr - 33 US-Ton/ft. To use with TOP.SM-134.28.8

Availability	on stock
Type	R1
Family	TOP
Product type	Hemming Punch
Tonnage	800 kN/m max. 26.87 Ton/ft max.
Material	42Cr: 900-1150 N/mm²
Height	158 mm 6.22 ''
Useful height	128 mm 5.04 ''
Degrees	28
Radius	0,6
To use with	TOP.SM-134.28.8

TOP.SM-134.28.8

Hemming die R1 European type TOP Series with working height=80mm/3.15", α= N/A, radius=1mm/.039, material=42Cr Max. Load=100Ton/mtr - 33 US-Ton/ft
