10300Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 21000CFH150.86.R02-STD

SIUSC

21000

Article No. Length Weight Price
21000.835 835 mm32.87 '' 15.30 kg33.73 lb
21000.415 415 mm16.34 '' 7.60 kg16.76 lb
21000.795s 795 mm31.3 '' FX 14.50 kg31.97 lb
21000.800s 800 mm31.5 '' FC 14.60 kg32.19 lb

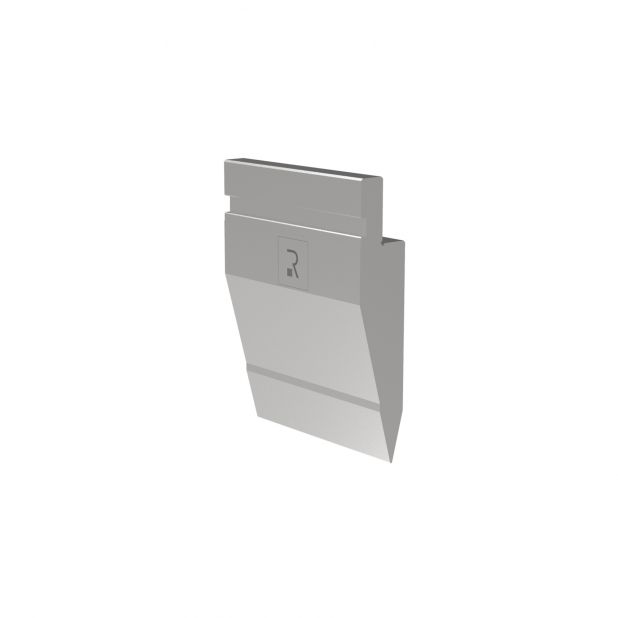

Punch R1 European type A Series with Working height=104mm, α=30°, Radius=0,65mm, Material=C45, Max. load=100
Punch R1 European type A Series with Working height=104mm, α=30°, Radius=0,65mm, Material=C45, Max. load=100
  • Description
  • Features
  • Attachments

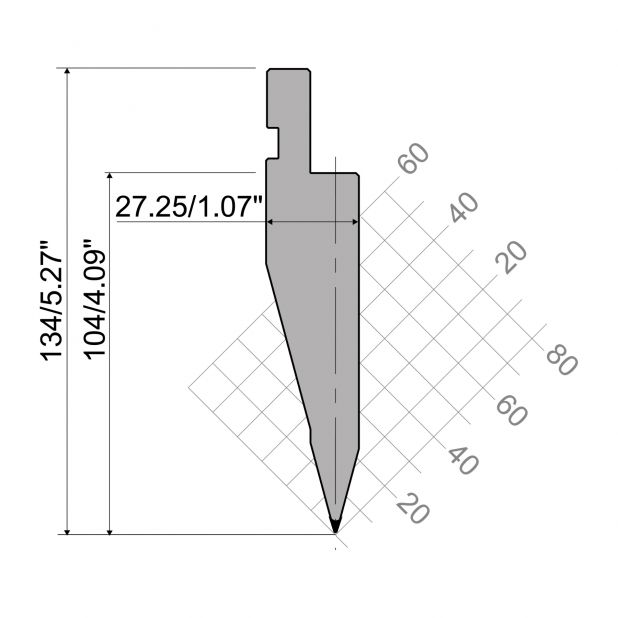

Punch R1 European type A Series with working height=104mm/4.09", α= 30°, radius=0.65mm/.026", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

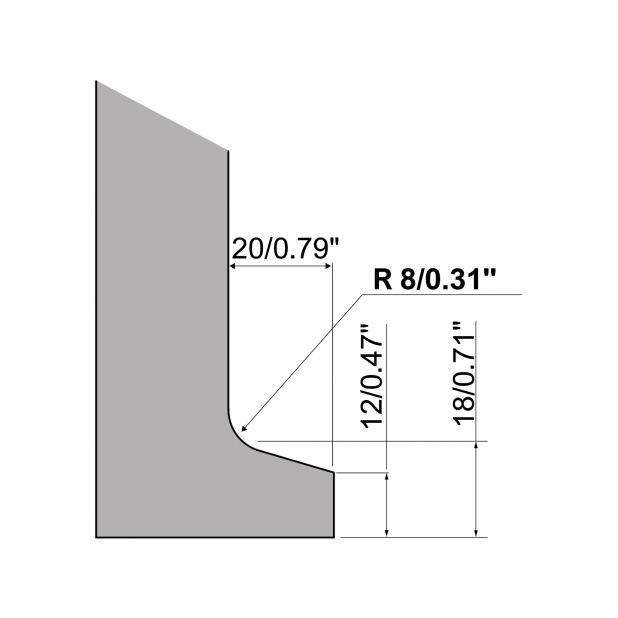

Horn 5
31.30" FX
31.49" FC
