CFH150.86.R02-GNKProducts > BENDING SOLUTIONS > Tools > Type R1: Punches > CFH150.86.R02-SSHCFH.150.88.R025

SIUSC

CFH150.86.R02-SSH

Article No. Length Weight Price
CFH150.86.R02-SSH.415 415 mm16.34 '' 5.90 kg13.01 lb
CFH150.86.R02-SSH.800 800 mm31.5 '' F 11.30 kg24.91 lb
CFH150.86.R02-SSH.835 835 mm32.87 '' 11.80 kg26.01 lb
Punch R1 European type CFH Series with Working height=120mm, α=86°, Radius=0,65mm, Material=42Cr, Max. load=
Punch R1 European type CFH Series with Working height=120mm, α=86°, Radius=0,65mm, Material=42Cr, Max. load=
  • Description
  • Features
  • Attachments

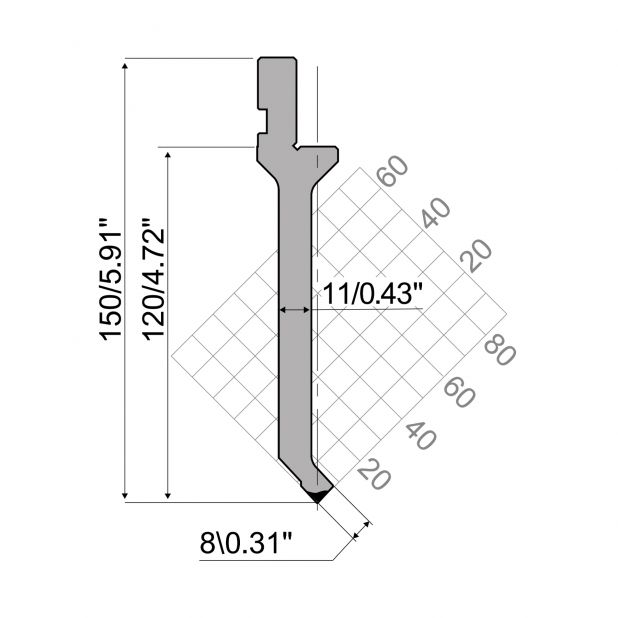

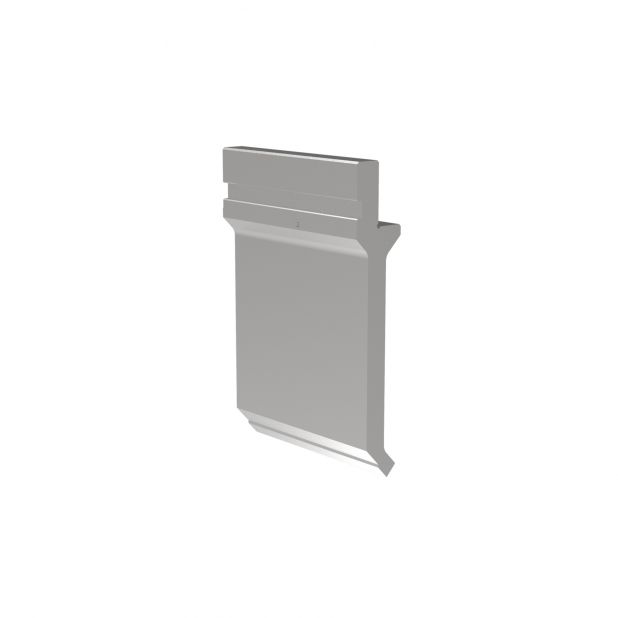

Punch R1 European type CFH Series with Working height= 120mm/4,72in, , Material= 42Cr, Max. load= 50 Ton/m, 15 US-Ton/ft.

Horn 1
31.49" F

F: 800 mm - 21.49"
mm: 100-300-150-50-40-20-15-15-10-100
in: 3.94-11.81-5.90-1.96-1.57-0.79-0.59-0-59-0.39-3.94

Also available H=85
