10800Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0030000800

SIUSC

00300

Article No. Length Weight Price
00300.835 835 mm32.87 '' 15.00 kg33.07 lb
00300.415 415 mm16.34 '' 7.50 kg16.53 lb
00300.795s 795 mm31.3 '' FX 14.40 kg31.75 lb
00300.835s 835 mm32.87 '' FCA 15.00 kg33.07 lb

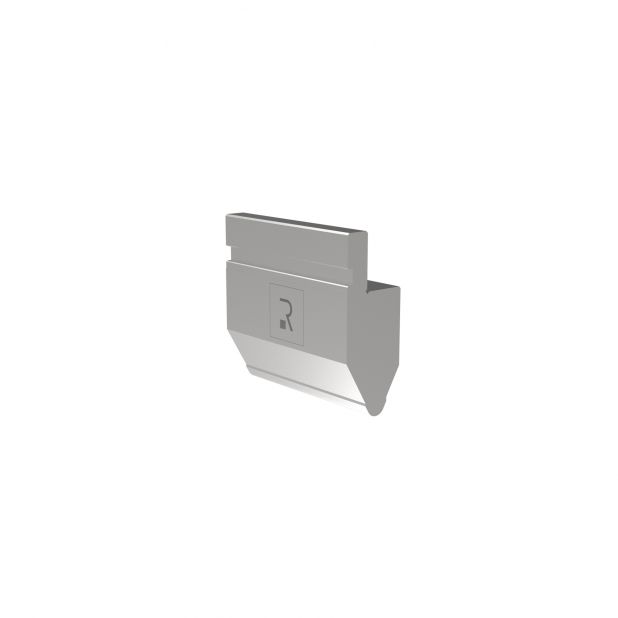

Punch R1 European type A Series with Working height=65mm, α=60°, Radius=6mm, Material=C45, Max. load=1000kN/
Punch R1 European type A Series with Working height=65mm, α=60°, Radius=6mm, Material=C45, Max. load=1000kN/
  • Description
  • Features
  • Attachments

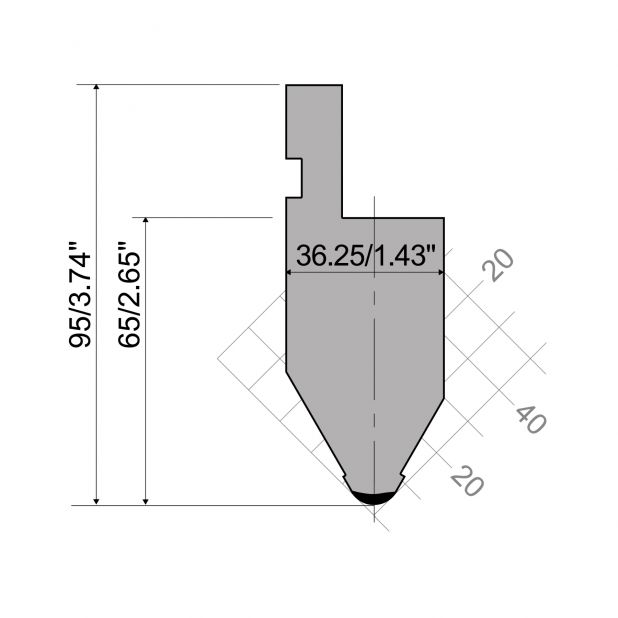

Punch R1 European type A Series with working height=65mm/2.56", α= 60°, radius=6mm/.236", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

Horn 6
31.30" FX
32.87" FCA
