CFH.150.88.R025

Article No. Length Weight Price
CFH.150.88.R025.835 835 mm32.87 '' 17.50 kg38.58 lb
CFH.150.88.R025.415 415 mm16.34 '' 8.70 kg19.18 lb
CFH.150.88.R025.800 800 mm31.5 '' F 16.90 kg37.26 lb
Punch R1 European type AFH Series with Working height=120mm, α=88°, Radius=0,25mm, Material=42Cr, Max. load=
Punch R1 European type AFH Series with Working height=120mm, α=88°, Radius=0,25mm, Material=42Cr, Max. load=
  • Description
  • Features
  • Attachments

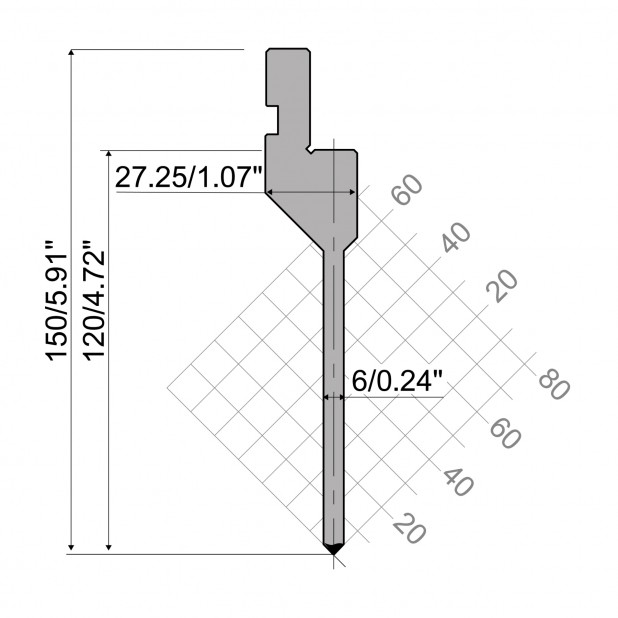

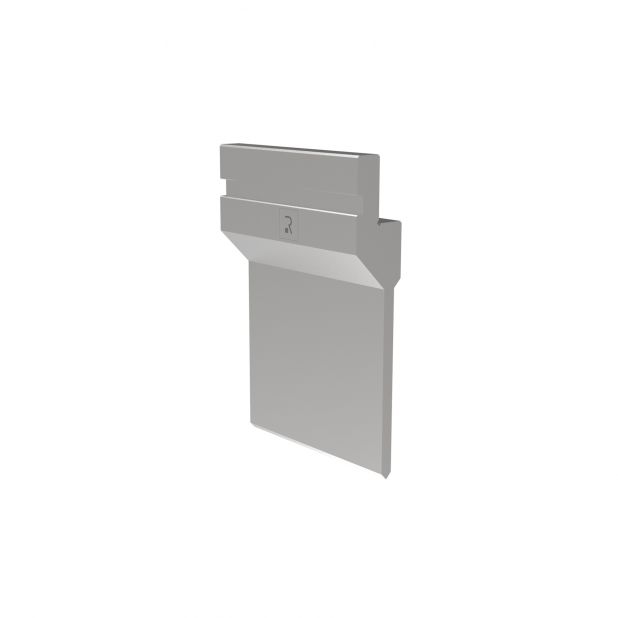

Punch R1 European type CFH Series with working height=120mm/4.72", α= 88°, radius=0.25mm/.01", material=42Cr Max. Load=50Ton/mtr - 17 US-Ton/ft

Horn 1

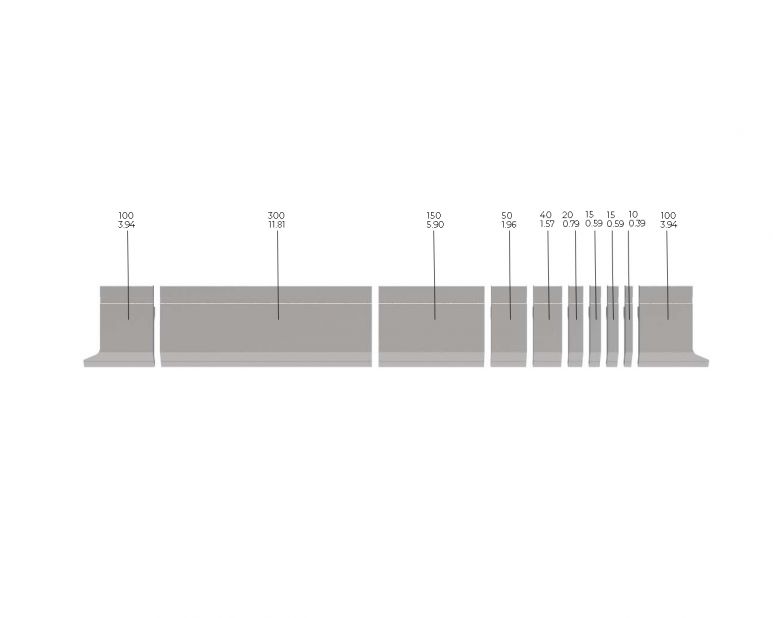

31.49" F

Also available H=85
