SIUSC

01602

Article No. Length Weight Price
01602.835 835 mm32.87 '' 11.00 kg24.25 lb
01602.415 415 mm16.34 '' 5.50 kg12.13 lb
01602.795s 795 mm31.3 '' FX 10.50 kg23.15 lb
01602.835s 835 mm32.87 '' FCA 11.00 kg24.25 lb

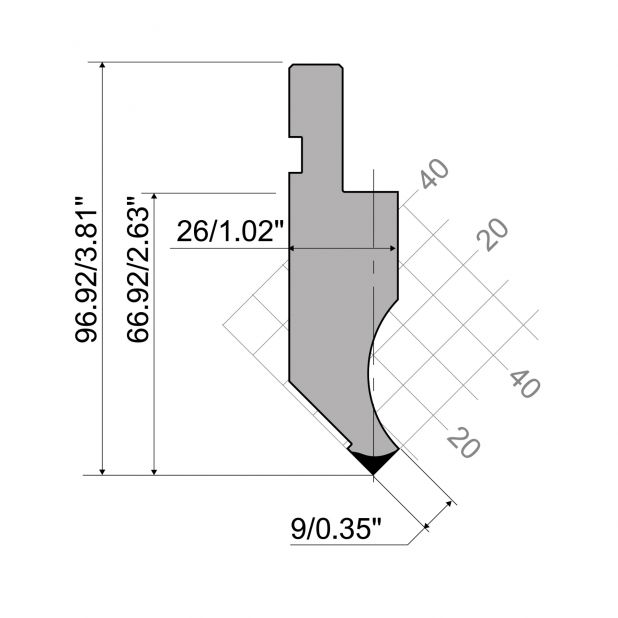

Punch R1 European type A Series with Working height=66,92mm, α=90°, Radius=0,2mm, Material=C45, Max. load=10
Punch R1 European type A Series with Working height=66,92mm, α=90°, Radius=0,2mm, Material=C45, Max. load=10
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with working height=66.92mm/2.63", α= 90°, radius=0.2mm/.008", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
