SIUSC

45202

Article No. Length Weight Price
45202.415 415 mm16.34 '' 9.80 kg21.61 lb
45202.795s 795 mm31.3 '' FX 18.70 kg41.23 lb
45202.835s 835 mm32.87 '' FCA 18.90 kg41.67 lb
45202.835 835 mm32.87 '' 19.60 kg43.21 lb
Punch R1 European type A Series with Working height=89,91mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=7
Punch R1 European type A Series with Working height=89,91mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=7
  • Description
  • Features
  • Attachments

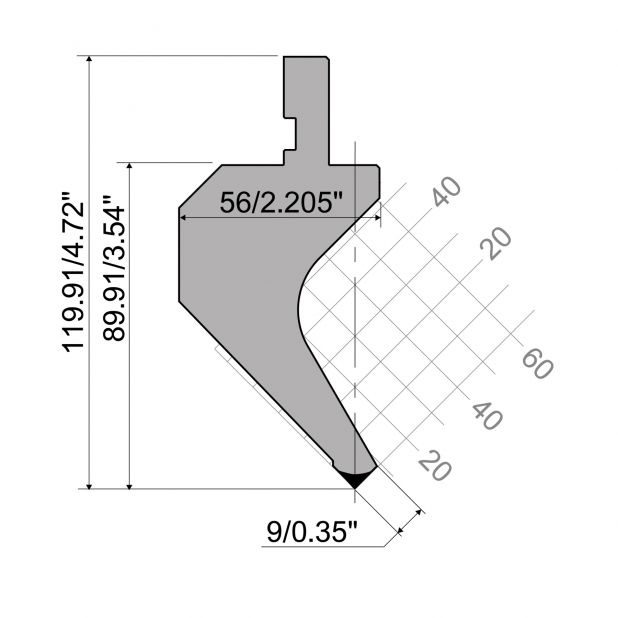

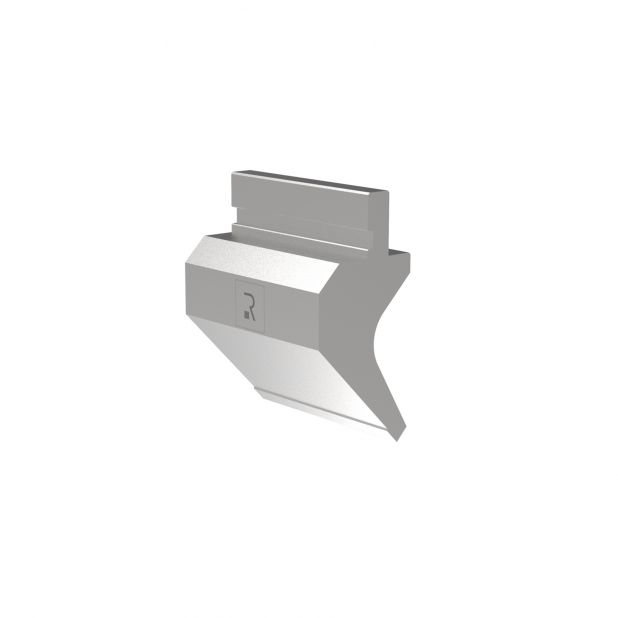

Punch R1 European type A Series with working height=89.91mm/3.54", α= 88°, radius=0.2mm/.008", material=42Cr Max. Load=70Ton/mtr - 23 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
