MSA - magnet
Extremely versatile and flexible magnetic bracket
20300Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0048001680
Article No. | Length | Weight | Price | |
---|---|---|---|---|
00480.795s | 795 mm31.3 '' FX | 9.5 kg20.94 lb | ||
00480.835s | 835 mm32.87 '' FCA | 9.6 kg21.16 lb | ||
00480.835 | 835 mm32.87 '' | 10.00 kg22.05 lb | ||
00480.415 | 415 mm16.34 '' | 5.00 kg11.02 lb |

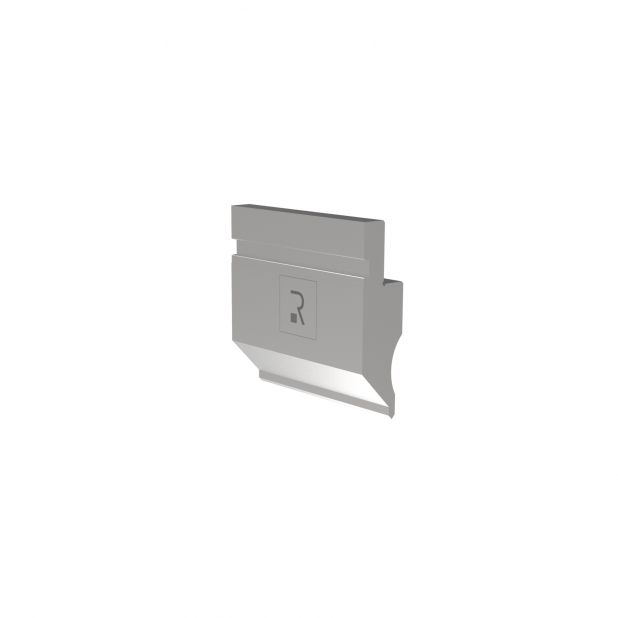

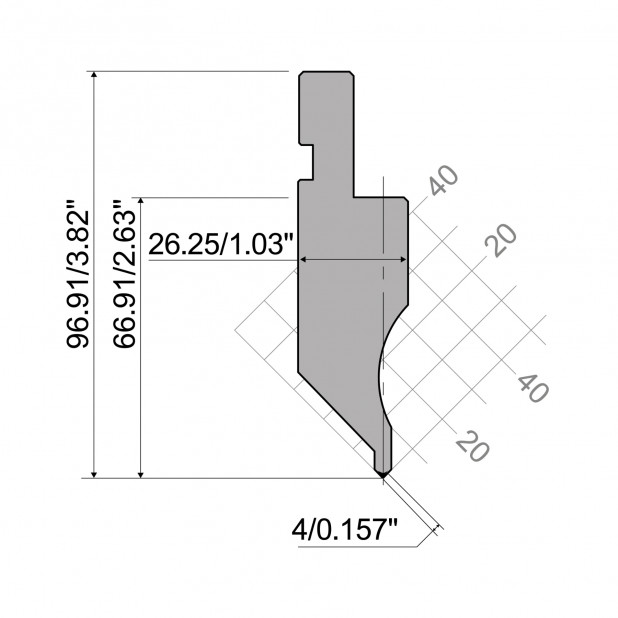

Punch R1 European type A Series with working height=66.91mm/2.63", α= 88°, radius=0.2mm/.008", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft
Extremely versatile and flexible magnetic bracket
