00430Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0163011700

SIUSC

01630

Article No. Length Weight Price
01630.835 835 mm32.87 '' 11.00 kg24.25 lb
01630.415 415 mm16.34 '' 5.50 kg12.13 lb
01630.795s 795 mm31.3 '' FX 10.50 kg23.15 lb
01630.835s 835 mm32.87 '' FCA 11.00 kg24.25 lb

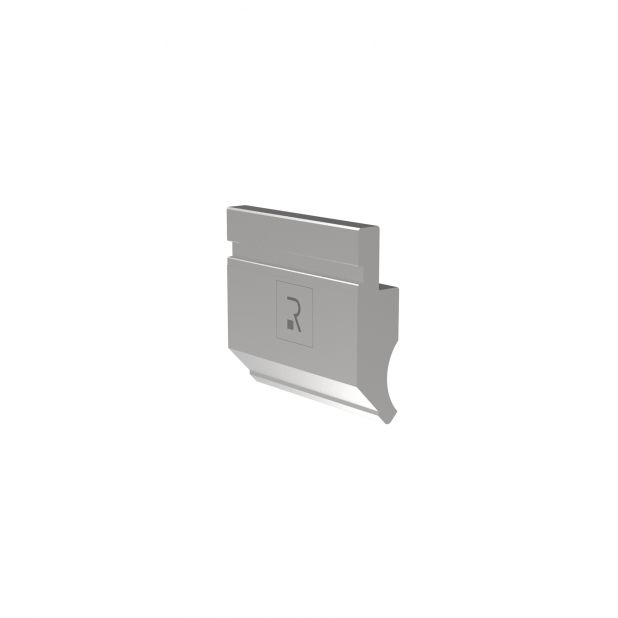

Punch R1 European type A Series with Working height=65,6mm, α=90°, Radius=3mm, Material=C45, Max. load=1000
Punch R1 European type A Series with Working height=65,6mm, α=90°, Radius=3mm, Material=C45, Max. load=1000
  • Description
  • Features
  • Attachments

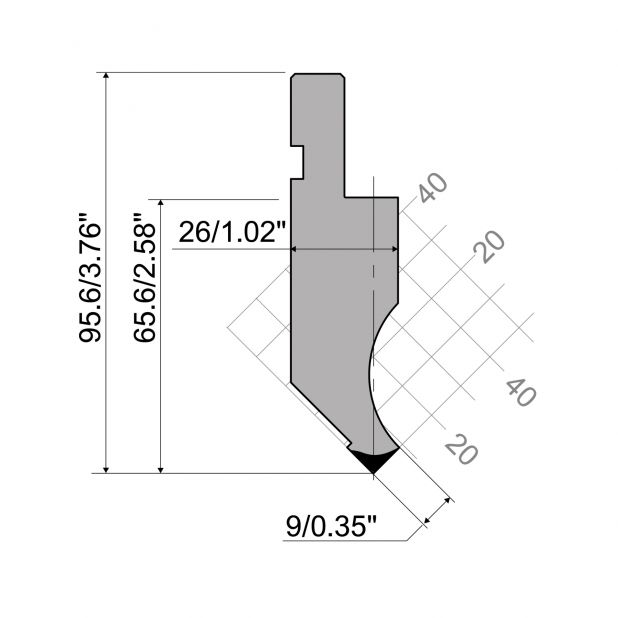

Punch R1 European type A Series with working height=65.6mm/2.58", α= 90°, radius=3mm/.118", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
