E30.22Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0040201602

SIUSC

00402

Article No. Length Weight Price
00402.835 835 mm32.87 '' 11.00 kg24.25 lb
00402.415 415 mm16.34 '' 5.50 kg12.13 lb
00402.795s 795 mm31.3 '' FX 10.50 kg23.15 lb
00402.835s 835 mm32.87 '' FCA 11 kg24.25 lb

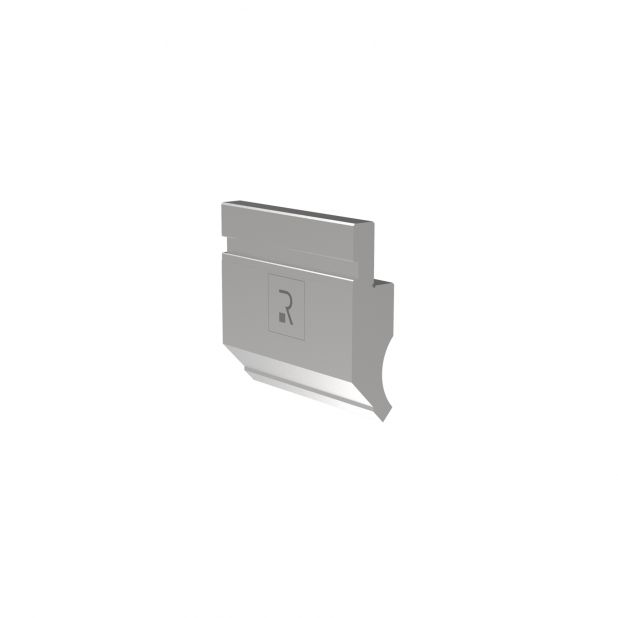

Punch R1 European type A Series with Working height=66,9mm, α=88°, Radius=0,2mm, Material=C45, Max. load=100
Punch R1 European type A Series with Working height=66,9mm, α=88°, Radius=0,2mm, Material=C45, Max. load=100
  • Description
  • Features
  • Attachments

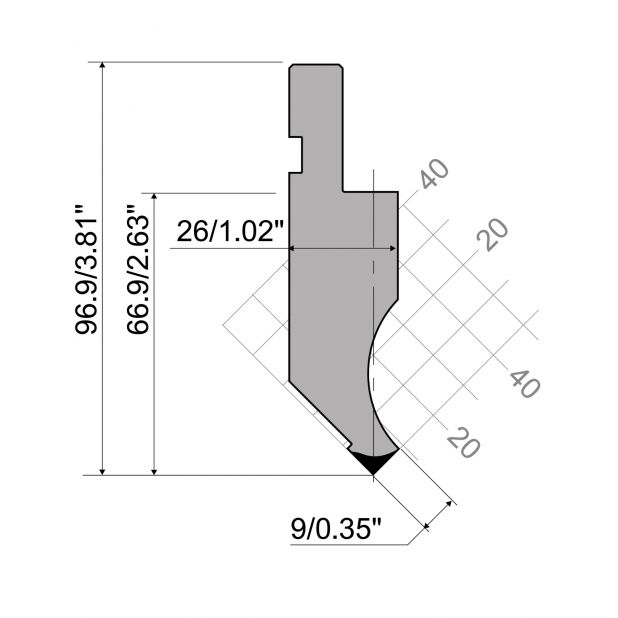

Punch R1 European type A Series with working height=66.9mm/2.63", α= 88°, radius=0.2mm/.008", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
