MSA - magnet
Extremely versatile and flexible magnetic bracket
P.97.88.R025Products > BENDING SOLUTIONS > Tools > Type R1: Punches > P.97.88.R08PK.97.88.R025
Article No. | Length | Weight | Price | |
---|---|---|---|---|
P.97.88.R08.835 | 835 mm32.87 '' | 11.10 kg24.47 lb | ||
P.97.88.R08.415 | 415 mm16.34 '' | 5.50 kg12.13 lb | ||
P.97.88.R08.795s | 795 mm31.3 '' FX | 10.60 kg23.37 lb | ||
P.97.88.R08.805s | 805 mm31.69 '' F | 10.70 kg23.59 lb | ||
P.97.88.R08.900 | 900 mm35.43 '' | 11.90 kg26.23 lb |

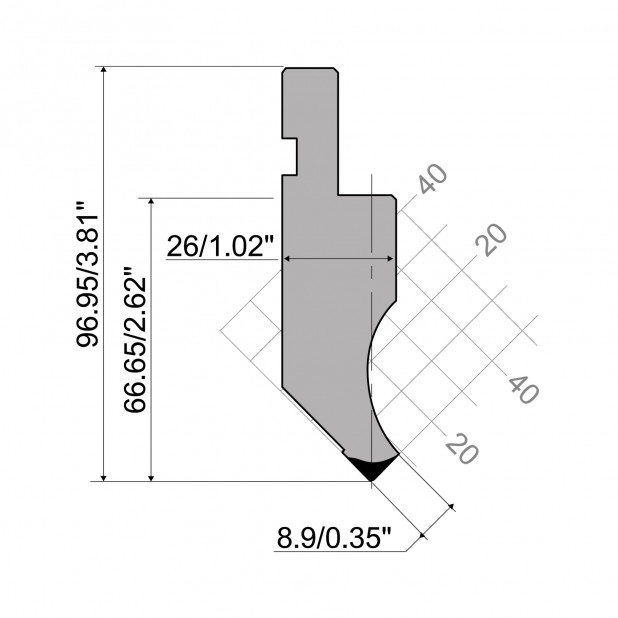

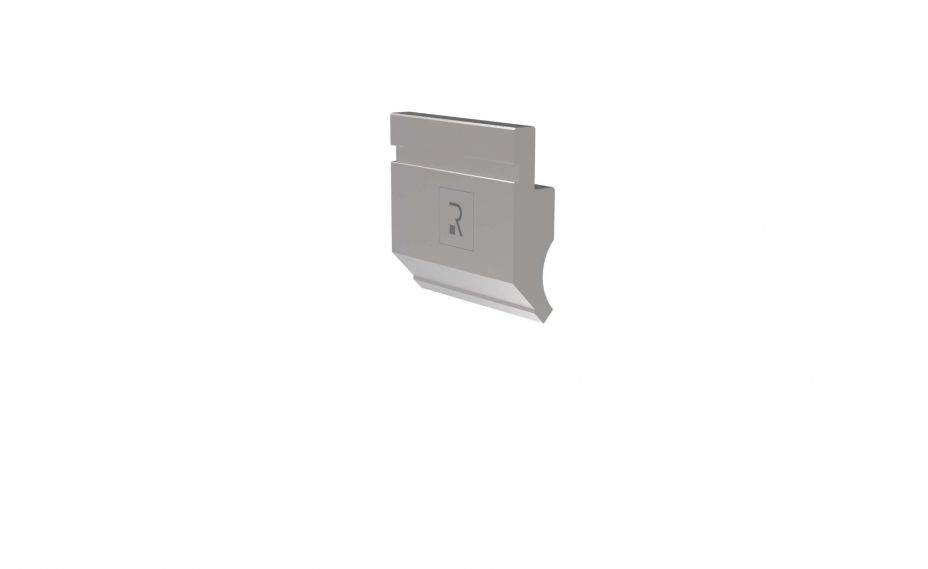

Punch R1 European type with working height=66.65mm/2.62", α= 88°, radius=0.8mm/.031", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft
Extremely versatile and flexible magnetic bracket
Punch R1 European type CFH Series with Working height= 66,65mm/2,62in, , Material= C45, Max. load= 15 Ton/m, 4,5 US-Ton/ft.
