TOP150.30.R12

Article No.	Length	Weight	Price
TOP.150.30.R12.500	500 mm19.69 ''	8.75 kg19.29 lb

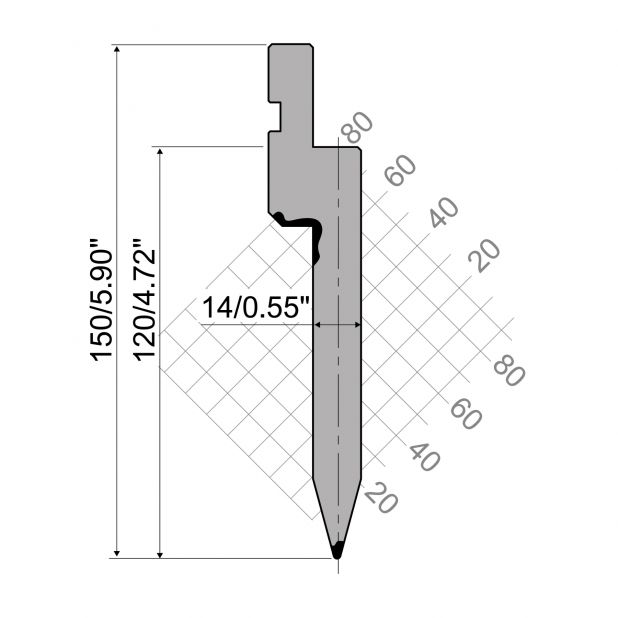

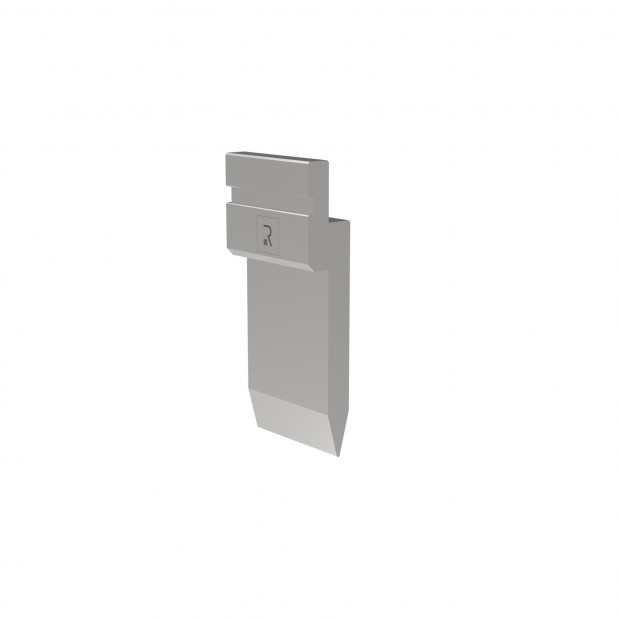

Punch R1 European type TOP Series with Working height=150mm, α=30°, Radius=1,2mm, Material=42cr, Max. load=1

Description
Features
Attachments

Punch R1 European type TOP Series with Working height= 120mm/4.72", , Material= 42cr, Max. load= 100 Ton/m, 33 US-Ton/ft.

Availability	on stock
Type	R1
Family	TOP
Product type	Hemming Punch
Tonnage	1000 kN/m max. 33.59 Ton/ft max.
Material	C45: 560-710 N/mm²
Height	150 mm 5.91 ''
Useful height	120 mm 4.72 ''
Degrees	30
Radius	1,2
To use with	SM55.14.30/C;SM55.12.30/C

MSA - magnet

Extremely versatile and flexible magnetic bracket

SM55.12.30/C

Hemming die R1 European type TOP Series with height= 55mm/2,17in, Material= 42cr, Max. load= 50 Ton/m, 15 US-Ton/ft. To use with TOP.SC.130 / TOP.SC.…

SM55.14.30/C

Hemming die R1 European type TOP Series with height= 55mm/2,17in, Material= 42cr, Max. load= 60 Ton/m, 18 US-Ton/ft. To use with TOP.SC.130 / TOP.SC.…
