46200Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0470204800

SIUSC

04702

Article No. Length Weight Price
04702.835 835 mm32.87 '' 26.00 kg57.32 lb
04702.415 415 mm16.34 '' 12.90 kg28.44 lb
04702.795s 795 mm31.3 '' FX 24.80 kg54.67 lb
04702.835s 835 mm32.87 '' FCA 24.90 kg54.9 lb

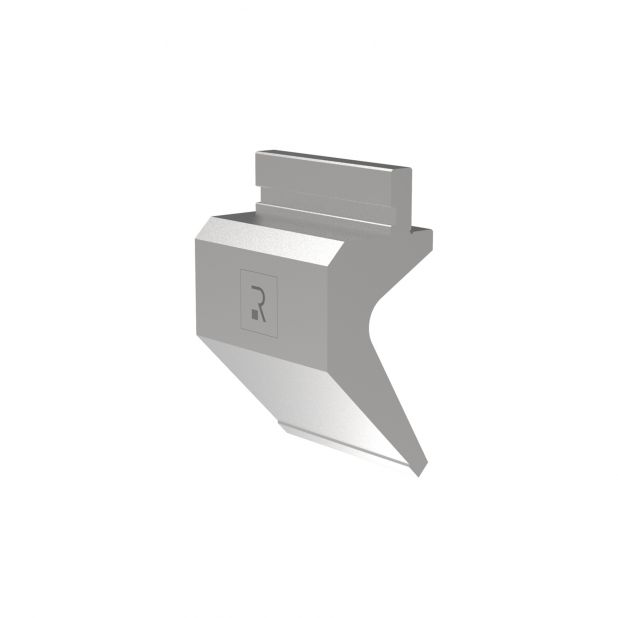

Punch R1 European type A Series with Working height=120mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=500
Punch R1 European type A Series with Working height=120mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=500
  • Description
  • Features
  • Attachments

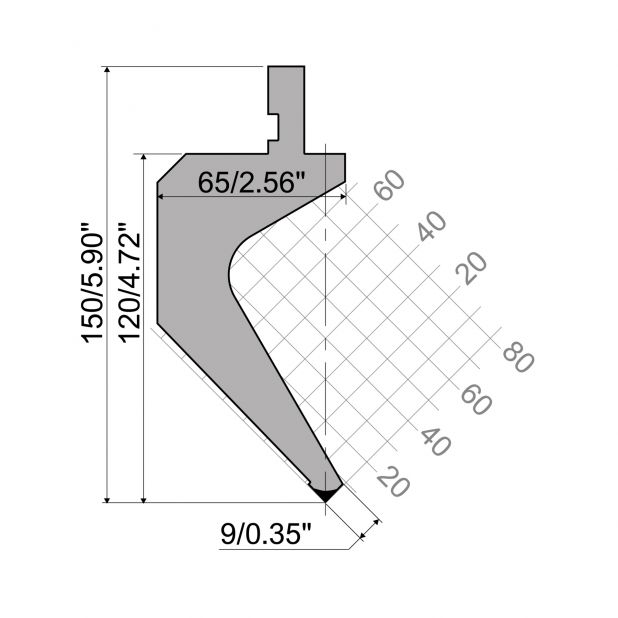

Punch R1 European type A Series with working height=120mm/4.72", α= 88°, radius=0.2mm/.008", material=42Cr Max. Load=50Ton/mtr - 17 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
