20000Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 2010020200

SIUSC

20100

Article No. Length Weight Price
20100.835 835 mm32.87 '' 7.90 kg17.42 lb
20100.415 415 mm16.34 '' 3.90 kg8.6 lb
20100.795s 795 mm31.3 '' FX 7.60 kg16.76 lb
20100.835s 835 mm32.87 '' FCA 7.60 kg16.76 lb

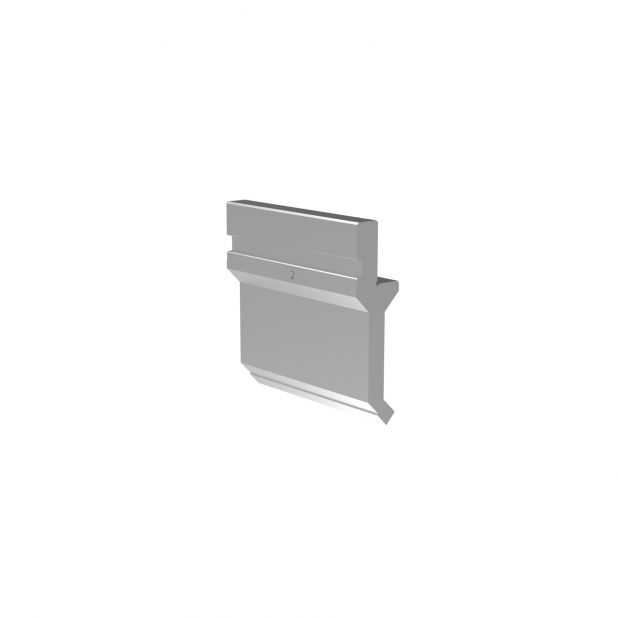

Punch R1 European type A Series with Working height=69,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=3
Punch R1 European type A Series with Working height=69,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=3
  • Description
  • Features
  • Attachments

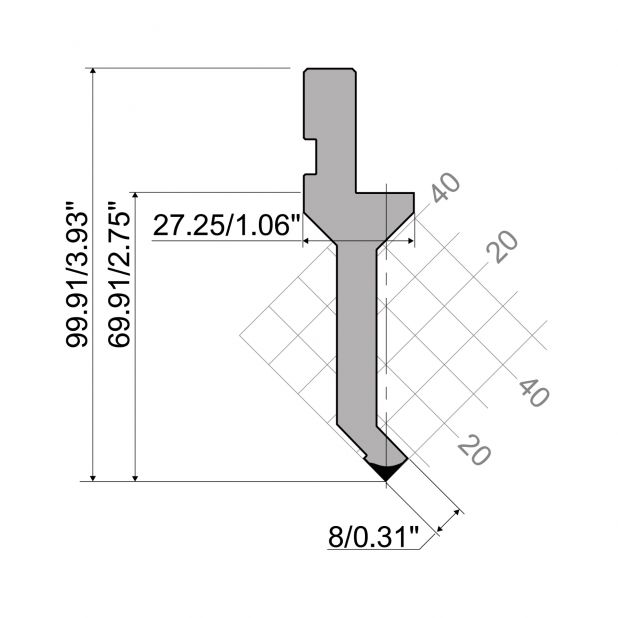

Punch R1 European type A Series with working height=69.91mm/2.75", α= 90°, radius=0.2mm/.008", material=42Cr Max. Load=30Ton/mtr - 10 US-Ton/ft

Horn 4
31.30" FX
31.70" FCA
