00300Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0080010300

SIUSC

00800

Article No. Length Weight Price
00800.835 835 mm32.87 '' 9.30 kg20.5 lb
00800.415 415 mm16.34 '' 4.60 kg10.14 lb
00800.795s 795 mm31.3 '' FX 9.30 kg20.5 lb
00800.835s 835 mm32.87 '' FCA 9.30 kg20.5 lb

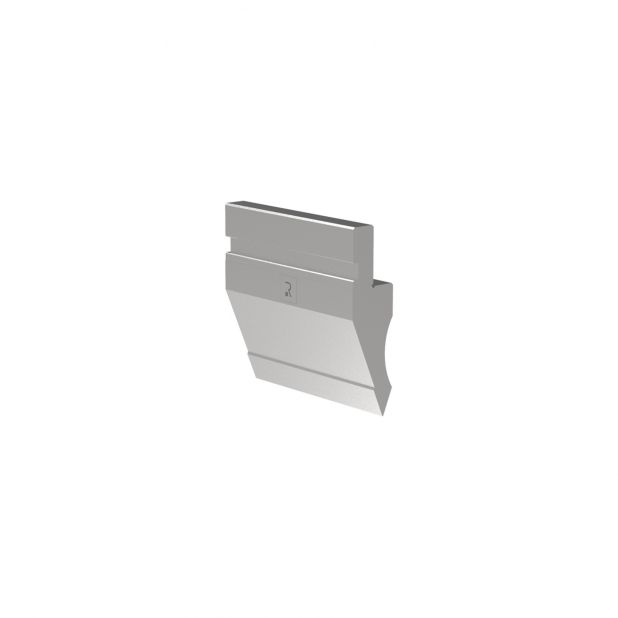

Punch R1 European type A Series with Working height=66,4mm, α=45°, Radius=0,37mm, Material=C45, Max. load=60
Punch R1 European type A Series with Working height=66,4mm, α=45°, Radius=0,37mm, Material=C45, Max. load=60
  • Description
  • Features
  • Attachments

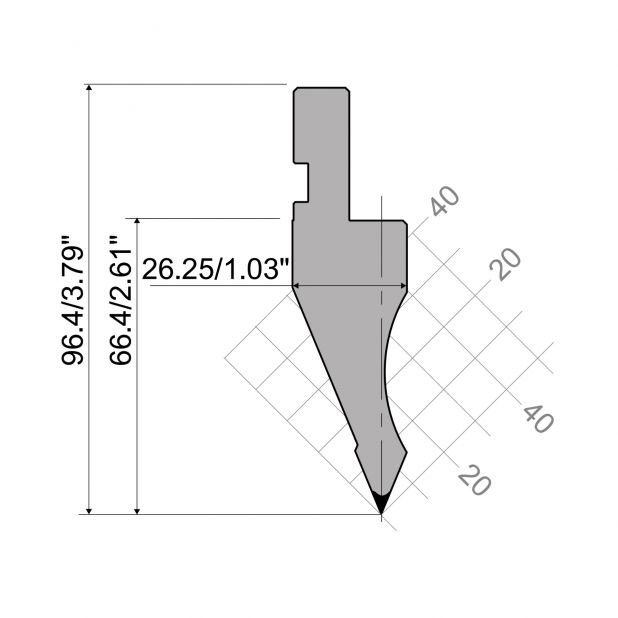

Punch R1 European type A Series with working height=66.4mm/2.61", α= 45°, radius=0.37mm/.015", material=C45 Max. Load=60Ton/mtr - 20 US-Ton/ft

Horn 5
31.30" FX
32.87" FCA
