01602Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 0043001630

SIUSC

00430

Article No. Length Weight Price
00430.835 835 mm32.87 '' 11.00 kg24.25 lb
00430.415 415 mm16.34 '' 5.50 kg12.13 lb
00430.795s 795 mm31.3 '' FX 10.50 kg23.15 lb
00430.835s 835 mm32.87 '' FCA 11 kg24.25 lb

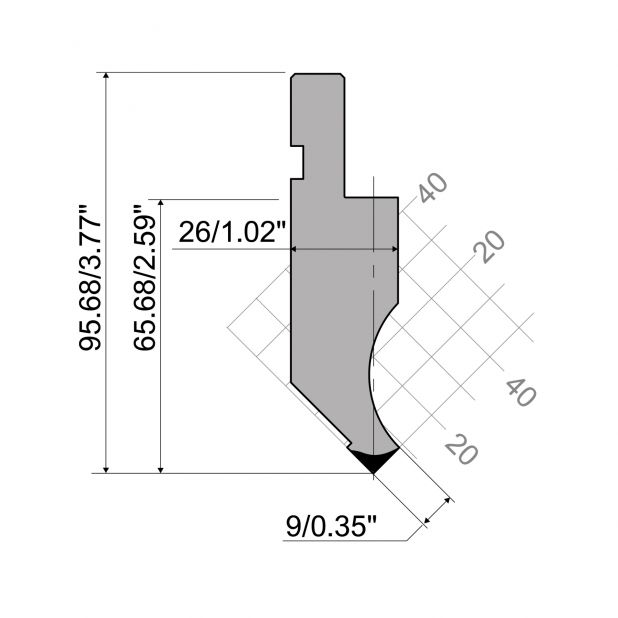

Punch R1 European type A Series with Working height=65,68mm, α=88°, Radius=3mm, Material=C45, Max. load=1000
Punch R1 European type A Series with Working height=65,68mm, α=88°, Radius=3mm, Material=C45, Max. load=1000
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with working height=65.68mm/2.59", α= 88°, radius=3mm/.118", material=C45 Max. Load=100Ton/mtr - 33 US-Ton/ft

Horn 3
31.30" FX
32.87" FCA
