CFH150.86.R02-STDProducts > BENDING SOLUTIONS > Tools > Type R1: Punches > CFH150.86.R02-GNKCFH150.86.R02-SSH

SIUSC

CFH150.86.R02-GNK

Article No. Length Weight Price
CFH150.86.R02-GNK.415 415 mm16.34 '' 12.50 kg27.56 lb
CFH150.86.R02-GNK.800 800 mm31.5 '' F 24.20 kg53.35 lb
CFH150.86.R02-GNK.835 835 mm32.87 '' 25.20 kg55.56 lb

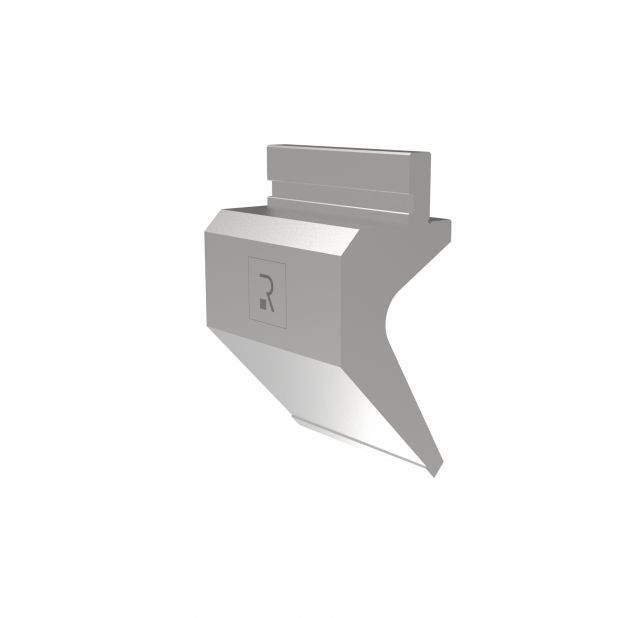

Punch R1 European type CFH Series with Working height=120mm, α=86°, Radius=0,2mm, Material=42Cr, Max. load=5

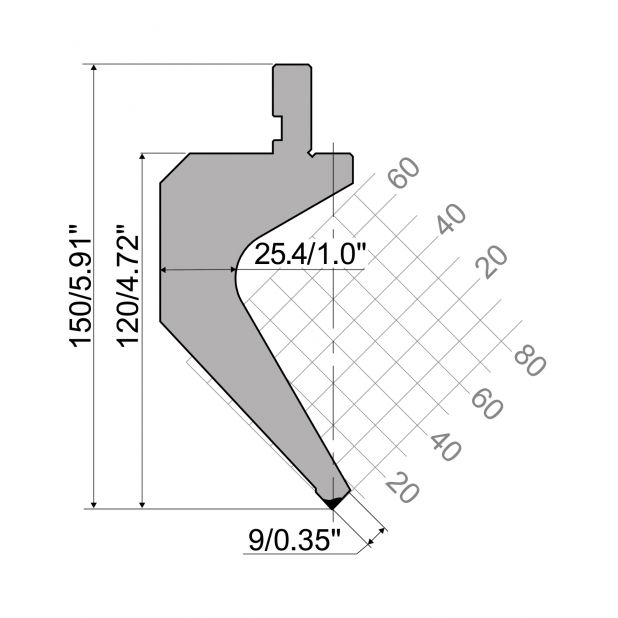

Punch R1 European type AFH Series with Working height=120mm, α=86°, Radius=0,2mm, Material=42Cr, Max. load=5
  • Description
  • Features
  • Attachments

Punch R1 European type CFH Series with Working height= 120mm/4,72in, , Material= 42Cr, Max. load= 50 Ton/m, 15 US-Ton/ft.

Horn 1
31.49" F
