10900Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 1090610800

SIUSC

10906

Article No. Length Weight Price
10906.835 835 mm32.87 '' 9.00 kg19.84 lb
10906.415 415 mm16.34 '' 4.50 kg9.92 lb
10906.795s 795 mm31.3 '' FX 8.50 kg18.74 lb
10906.835s 835 mm32.87 '' FCA 9.00 kg19.84 lb

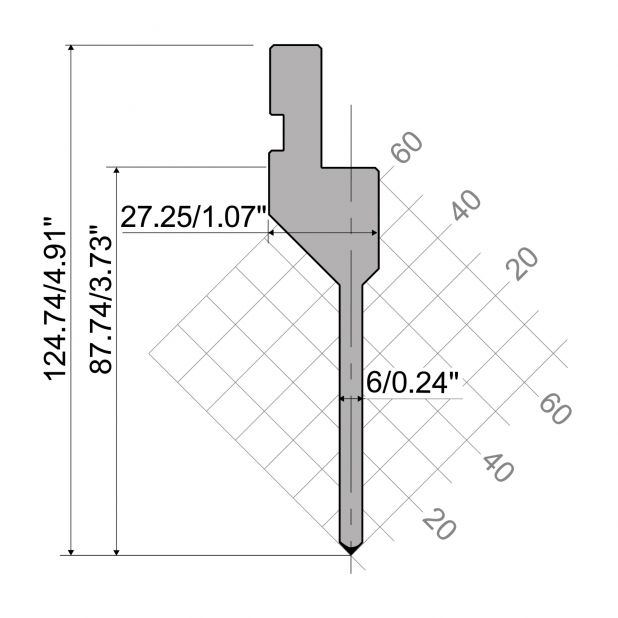

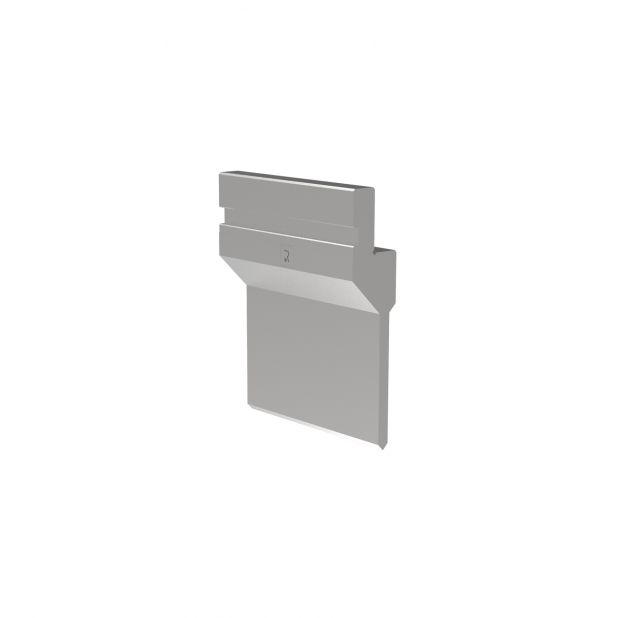

Punch R1 European type A Series with Working height=94,74mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=5
Punch R1 European type A Series with Working height=94,74mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=5
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with working height=94.74mm/3.73", α= 88°, radius=0.6mm/.024", material=42Cr Max. Load=50Ton/mtr - 17 US-Ton/ft

Horn 4
31.30" FX
32.87" FCA
