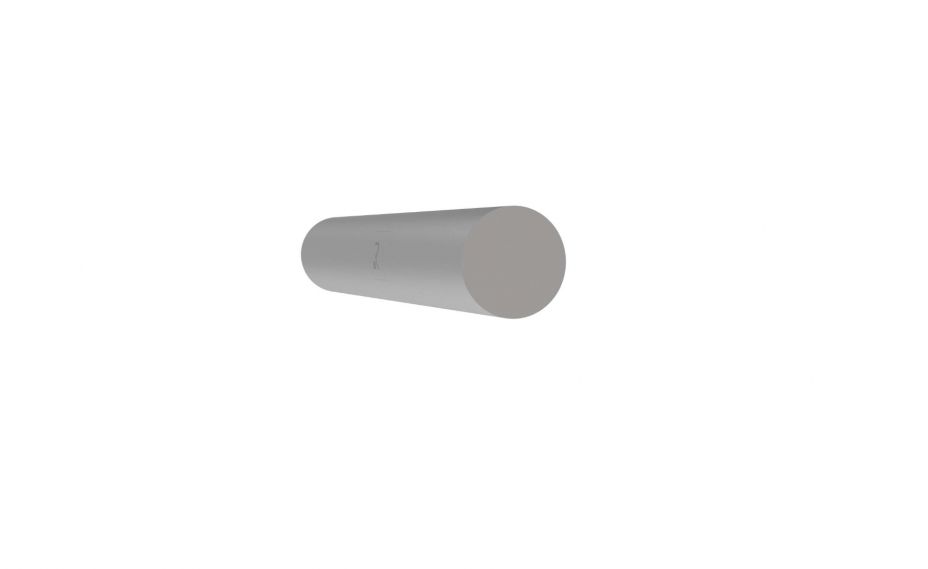

Radius Tools R8-40
| Article No. | Model | Length | R(mm)R('') | Weight | Price | |
|---|---|---|---|---|---|---|
| TOP.C08.525 | TOP.C08 | 525 mm20.67 '' | 8.0 mm0.31 '' | 0.80 kg1.76 lb |
|
|
| TOP.C08.495s | TOP.C08 | 495 mm19.49 '' segmented | 8.0 mm0.31 '' | 1.90 kg4.19 lb |
|
|
| TOP.C10.525 | TOP.C10 | 525 mm20.67 '' | 10.0 mm0.39 '' | 1.30 kg2.87 lb |
|
|
| TOP.C10.495s | TOP.C10 | 495 mm19.49 '' segmented | 10.0 mm0.39 '' | 2.70 kg5.95 lb |
|
|
| TOP.C12.5.525 | TOP.C12.5 | 525 mm20.67 '' | 12.5 mm0.49 '' | 2.00 kg4.41 lb |
|
|
| TOP.C12.5.495s | TOP.C12.5 | 495 mm19.49 '' segmented | 12.5 mm0.49 '' | 2.80 kg6.17 lb |
|
|
| TOP.C15.525 | TOP.C15 | 525 mm20.67 '' | 15.0 mm0.59 '' | 3.00 kg6.61 lb |
|
|
| TOP.C15.495s | TOP.C15 | 495 mm19.49 '' segmented | 15.0 mm0.59 '' | 3.80 kg8.38 lb |
|
|
| TOP.C17.5.525 | TOP.C17.5 | 525 mm20.67 '' | 17.5 mm0.69 '' | 4.00 kg8.82 lb |
|
|
| TOP.C17.5.495s | TOP.C17.5 | 495 mm19.49 '' segmented | 17.5 mm0.69 '' | 4.70 kg10.36 lb |
|
|
| TOP.C20.525 | TOP.C20 | 525 mm20.67 '' | 20.0 mm0.79 '' | 5.20 kg11.46 lb |
|
|
| TOP.C20.495s | TOP.C20 | 495 mm19.49 '' segmented | 20.0 mm0.79 '' | 6.60 kg14.55 lb |
|
|
| TOP.C25.525 | TOP.C25 | 525 mm20.67 '' | 25.0 mm0.98 '' | 8.10 kg17.86 lb |
|
|
| TOP.C25.495s | TOP.C25 | 495 mm19.49 '' segmented | 25.0 mm0.98 '' | 7.50 kg16.53 lb |
|
|
| TOP.C30.525 | TOP.C30 | 525 mm20.67 '' | 30.0 mm1.18 '' | 11.70 kg25.79 lb |
|
|
| TOP.C30.495s | TOP.C30 | 495 mm19.49 '' segmented | 30.0 mm1.18 '' | 11.30 kg24.91 lb |
|
|
| TOP.C35.525 | TOP.C35 | 525 mm20.67 '' | 35.0 mm1.38 '' | 16.00 kg35.27 lb |
|
|
| TOP.C35.495s | TOP.C35 | 495 mm19.49 '' segmented | 35.0 mm1.38 '' | 15.10 kg33.29 lb |
|
|
| TOP.C40.525 | TOP.C40 | 525 mm20.67 '' | 40.0 mm1.57 '' | 20.70 kg45.64 lb |
|
|
| TOP.C40.495s | TOP.C40 | 495 mm19.49 '' segmented | 40.0 mm1.57 '' | 19.50 kg42.99 lb |
|
|
| TOP.C22.5.525 | TOP.C22.5 | 525 mm20.67 '' | 22.5 mm0.89 '' | 6.60 kg14.55 lb |
|
|
| TOP.C22.5.495s | TOP.C22.5 | 495 mm19.49 '' segmented | 22.5 mm0.89 '' | 6.60 kg14.55 lb |
|
|
| TOP.C27.5.525 | TOP.C27.5 | 525 mm20.67 '' | 27.5 mm1.08 '' | 9.80 kg21.61 lb |
|
|
| TOP.C27.5.495s | TOP.C27.5 | 495 mm19.49 '' segmented | 27.5 mm1.08 '' | 9.20 kg20.28 lb |
|
|
| TOP.C32.5.525 | TOP.C32.5 | 525 mm20.67 '' | 32.5 mm1.28 '' | 13.70 kg30.2 lb |
|
- Description
- Features

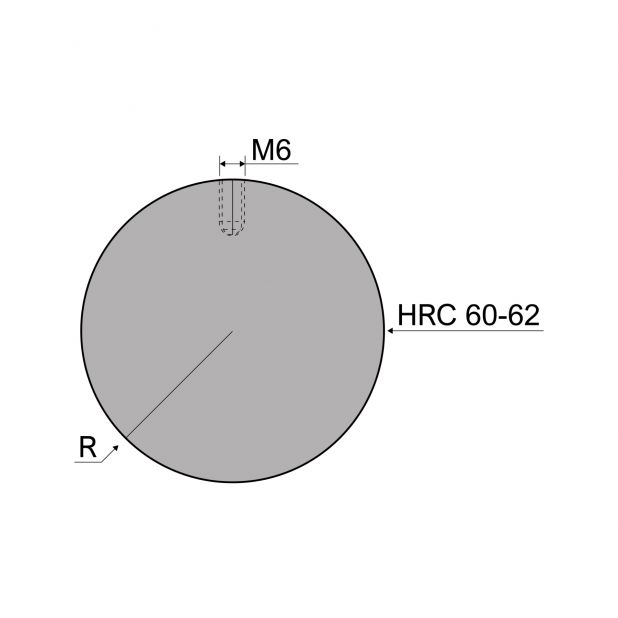

Radius Tool Inserts with Material=c53, Max.Load=100Ton/m, 30US-Ton/ft. To use with Holders TOP.PC.120-08, TOP.PC.120-20, TPR143.10, TPR136.15, BPR150.P10.10-RFA, BPR150.P10.15-RFA
