P.120.35.R15Products > BENDING SOLUTIONS > Tools > Type R1: Punches > P.120.35.R3PS.134.30.R08
Article No. | Length | Weight | Price | |
---|---|---|---|---|
P.120.35.R3.835 | 835 mm32.87 '' | 13.00 kg28.66 lb | ||
P.120.35.R3.415 | 415 mm16.34 '' | 6.40 kg14.11 lb | ||
P.120.35.R3.795s | 795 mm31.3 '' FX | 12.40 kg27.34 lb | ||
P.120.35.R3.805s | 805 mm31.69 '' F | 12.50 kg27.56 lb |

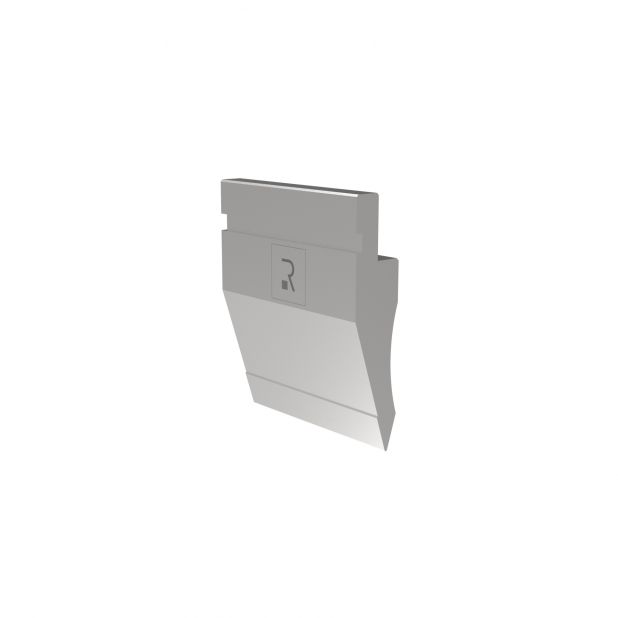

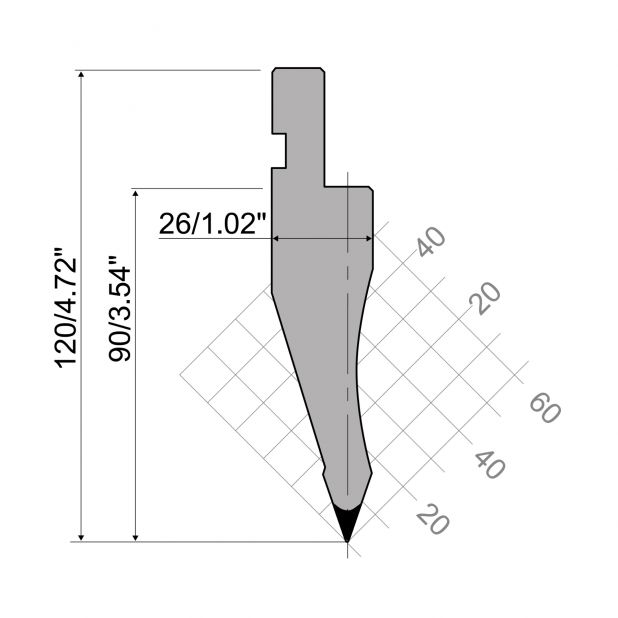

Punch R1 European type with working height=90mm/3.54", α= 35°, radius=3mm/.118", material=C45 Max. Load=70Ton/mtr - 23 US-Ton/ft
