E30.22

Article No.	Length	Weight	Price
E30.22.835	835 mm32.87 ''	3.5 kg7.72 lb
E30.22.415	415 mm16.34 ''	1.7 kg3.75 lb

Description
Features
Attachments

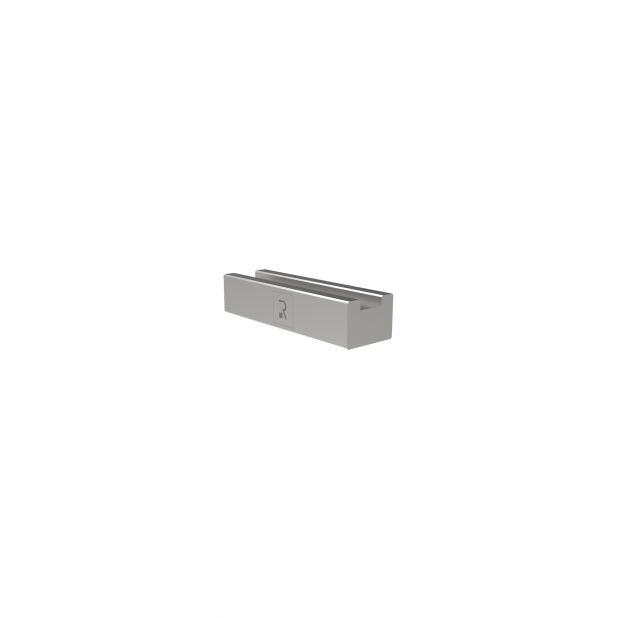

Hemming tool, To use with PU.67.14. PU.87.14. PU.105.14

Availability	on stock
Type	R1/R2/R3
Family	CLASSIC
Product type	Radius and Flattening bends
Tonnage	800 kN/m max. 26.87 Ton/ft max.
Material	C45: 560-710 N/mm²

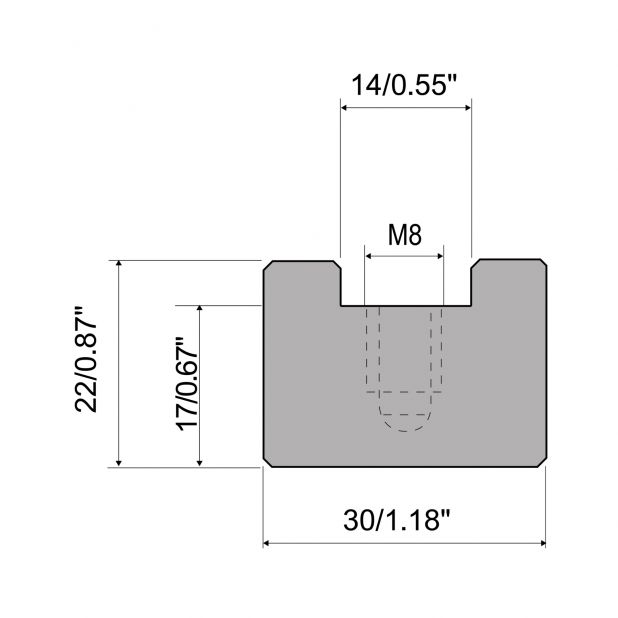

Height	22 mm 0.87 ''
Useful height	17 mm 0.67 ''
To use with	PU.67.14. PU.87.14. PU.105.14
