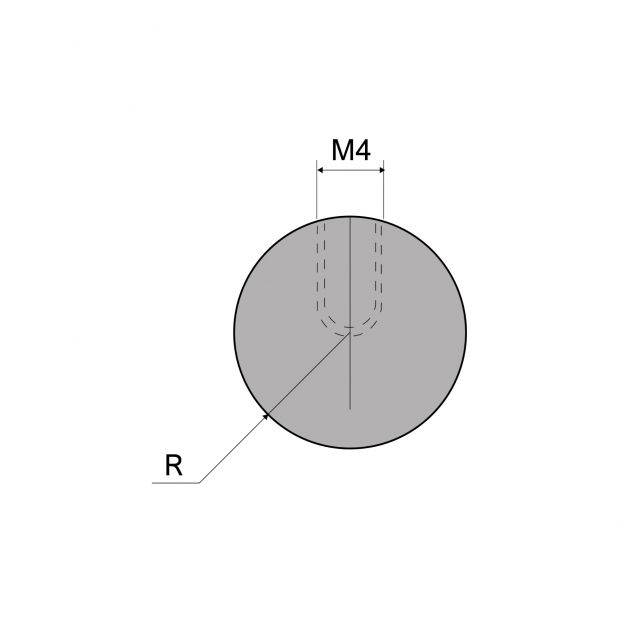

Radius Tools: C3 - C7.5

Article No.	Model	Length	R(mm)R('')	Weight
C3.835	C3	835 mm32.87 ''	3.0 mm0.12 ''	0.20 kg0.44 lb
C3.415	C3	415 mm16.34 ''	3.0 mm0.12 ''	0.10 kg0.22 lb
C3.5.835	C3.5	835 mm32.87 ''	3.5 mm0.14 ''	0.20 kg0.44 lb
C3.5.415	C3.5	415 mm16.34 ''	3.5 mm0.14 ''	0.10 kg0.22 lb
C4.835	C4	835 mm32.87 ''	4.0 mm0.16 ''	0.35 kg0.77 lb
C4.415	C4	415 mm16.34 ''	4.0 mm0.16 ''	0.17 kg0.37 lb
C4.5.835	C4.5	835 mm32.87 ''	4.5 mm0.18 ''	0.50 kg1.1 lb
C4.5.415	C4.5	415 mm16.34 ''	4.5 mm0.18 ''	0.25 kg0.55 lb
C5.835	C5	835 mm32.87 ''	5.0 mm0.2 ''	0.60 kg1.32 lb
C5.415	C5	415 mm16.34 ''	5.0 mm0.2 ''	0.30 kg0.66 lb
C5.5.835	C5.5	835 mm32.87 ''	5.5 mm0.22 ''	0.70 kg1.54 lb
C5.5.415	C5.5	415 mm16.34 ''	5.5 mm0.22 ''	0.35 kg0.77 lb
C6.835	C6	835 mm32.87 ''	6.0 mm0.24 ''	0.80 kg1.76 lb
C6.415	C6	415 mm16.34 ''	6.0 mm0.24 ''	0.40 kg0.88 lb
C6.5.835	C6.5	835 mm32.87 ''	6.5 mm0.26 ''	1.00 kg2.2 lb
C6.5.415	C6.5	415 mm16.34 ''	6.5 mm0.26 ''	0.50 kg1.1 lb
C7.835	C7	835 mm32.87 ''	7.0 mm0.28 ''	0.80 kg1.76 lb
C7.415	C7	415 mm16.34 ''	7.0 mm0.28 ''	0.40 kg0.88 lb
C7.5.835	C7.5	835 mm32.87 ''	7.5 mm0.3 ''	1.00 kg2.2 lb
C7.5.415	C7.5	415 mm16.34 ''	7.5 mm0.3 ''	0.50 kg1.1 lb

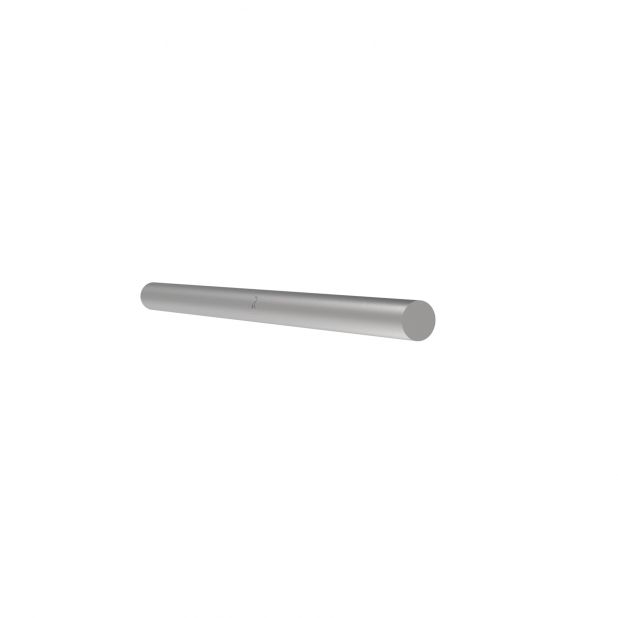

Radius inserts with Material=C45, Max. Load=40Ton/mtr - 12 US-Ton/ft. To use with Holder PU67.14-S.
