PU.115.14

Article No.	Length	Weight	Price
PU.115.14.830	830 mm32.68 ''	26.00 kg57.32 lb
PU.115.14.410	410 mm16.14 ''	13.00 kg28.66 lb

"Radius and Hemming punch R1 European type with Working height=105mm, Material=C45, Max. load=800kN/m. To use

Description
Features
Attachments

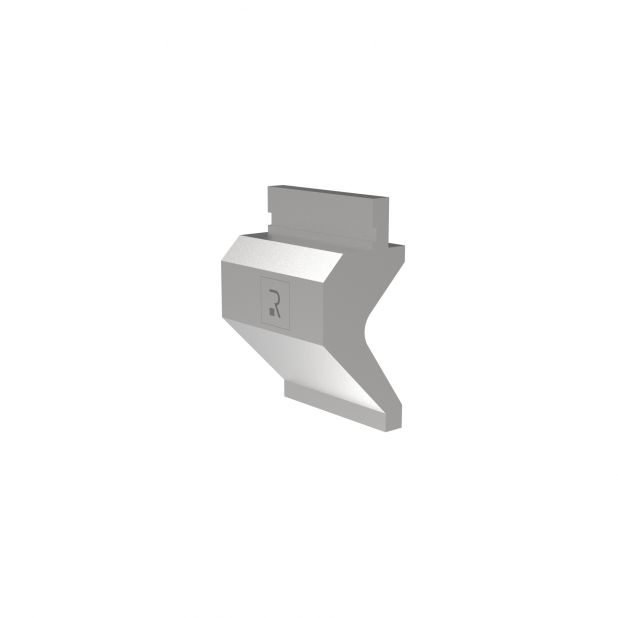

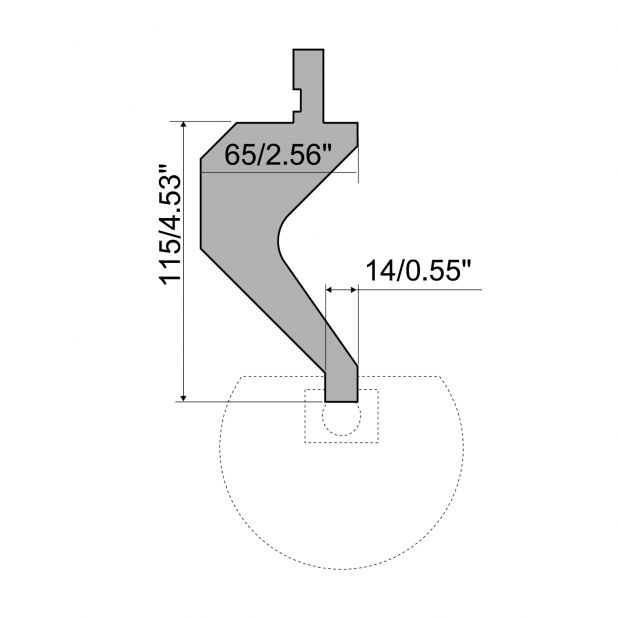

Radius and Hemming punch R1 European type with working height=115mm/4.53", material=C45 Max. Load=50Ton/mtr - 17 US-Ton/ft. To use with E30.20, C13.08-C70.50

Availability	on stock
Type	R1
Series	Classic
Family	CLASSIC
Product type	Radius and Flattening bends
Tonnage	500 kN/m max. 16.8 Ton/ft max.
Material	C45: 560-710 N/mm²
Useful height	115 mm 4.53 ''
To use with	E30.20, C13.08-C70.50
