SIUSC

11700

Article No. Length Weight Price
11700.835 835 mm32.87 '' 10.70 kg23.59 lb
11700.415 415 mm16.34 '' 5.30 kg11.68 lb
11700.795s 795 mm31.3 '' FX 10.20 kg22.49 lb
11700.800s 800 mm31.5 '' FC 10.30 kg22.71 lb

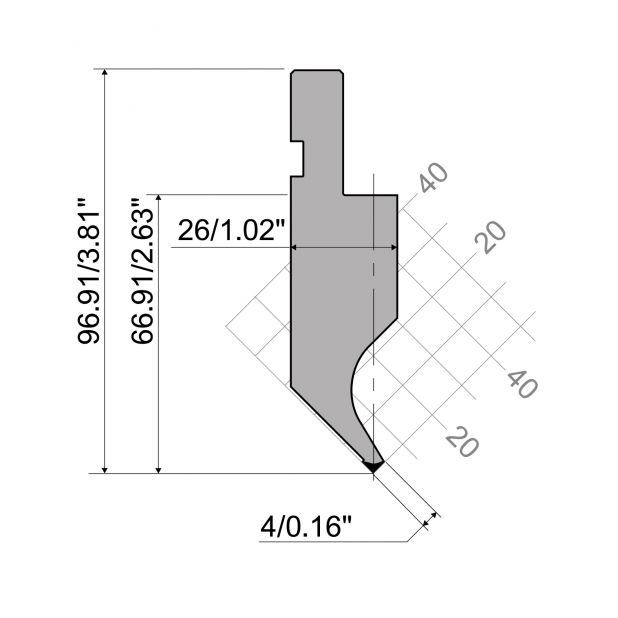

Punch R1 European type A Series with Working height=66,91mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=2
Punch R1 European type A Series with Working height=66,91mm, α=88°, Radius=0,2mm, Material=42Cr, Max. load=2
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with working height=66.91mm/2.63", α= 88°, radius=0.2mm/.008", material=42Cr Max. Load=20Ton/mtr - 7 US-Ton/ft

Horn 7
31.49" FC
31.30" FX
