P.196.88.R06

Article No. Length Weight Price
P.196.88.R06.835 835 mm32.87 '' 42.00 kg92.59 lb
P.196.88.R06.415 415 mm16.34 '' 20.80 kg45.86 lb
P.196.88.R06.795s 795 mm31.3 '' FX 40.00 kg88.18 lb
P.196.88.R06.805s 805 mm31.69 '' F 40.40 kg89.07 lb
P.196.88.R06.900 900 mm35.43 '' 45.20 kg99.65 lb

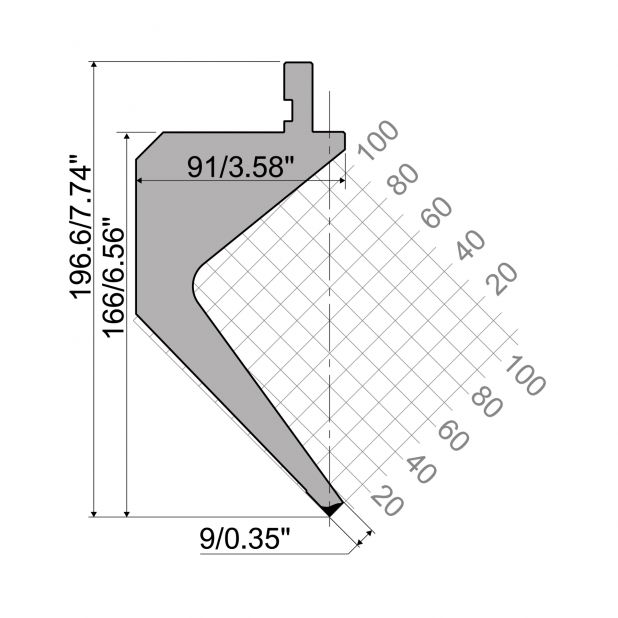

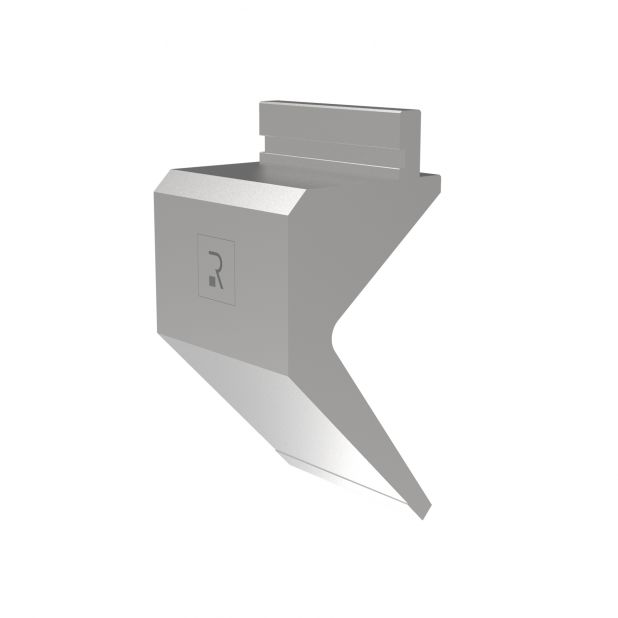

Punch R1 European type with Working height=166,6mm, α=88°, Radius=0,6mm, Material=C45, Max. load=300kN/m.
Punch R1 European type with Working height=166,6mm, α=88°, Radius=0,6mm, Material=C45, Max. load=300kN/m.
  • Description
  • Features
  • Attachments

Punch R1 European type with working height=166.6mm/6.56", α= 88°, radius=0.6mm/.024", material=C45 Max. Load=30Ton/mtr - 10 US-Ton/ft

Horn 1
31.70" F
31.30" FX
