10906Products > BENDING SOLUTIONS > Tools > Type R1: Punches > 1080000300

SIUSC

10800

Article No. Length Weight Price
10800.835 835 mm32.87 '' 11.00 kg24.25 lb
10800.795s 795 mm31.3 '' FX 8.50 kg18.74 lb
10800.415 415 mm16.34 '' 5.50 kg12.13 lb
10800.835s 835 mm32.87 '' FCA 11.00 kg24.25 lb

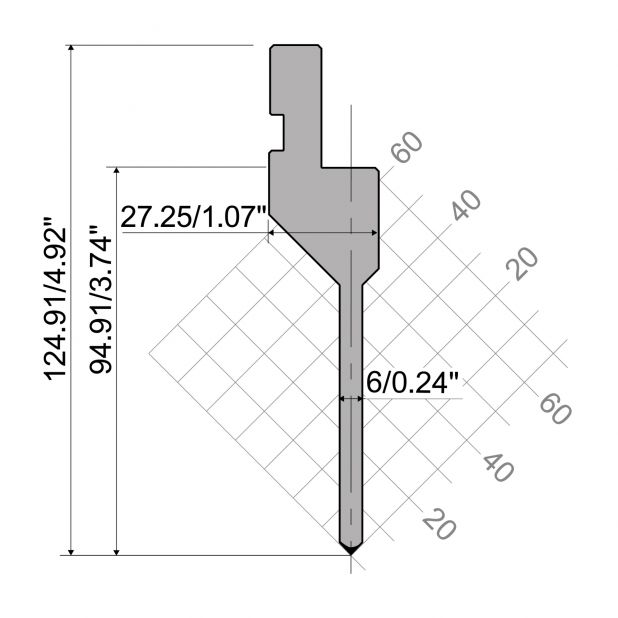

Punch R1 European type A Series with Working height=94,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=5
Punch R1 European type A Series with Working height=94,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=5
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with working height=94.91mm/3.74", α= 90°, radius=0.2mm/.008", material=42Cr Max. Load=50Ton/mtr - 17 US-Ton/ft

Horn 4
31.30" FX
32.87" FCA
