WROL HYD SUPREMEProducts > CLAMPING SYSTEMS > WROL HYD POWERWROL PN EXTREME

SIUSC

WROL HYD POWER

Article No. Length Price
WROLHYD POWER 2550 2550 mm100.39 ''
WROLHYD POWER 1550 1550 mm61.02 ''
WROLHYD POWER 2040 2040 mm80.32 ''
WROLHYD POWER 3060 3060 mm120.47 ''
WROLHYD POWER 3570 3570 mm140.55 ''
WROLHYD POWER 4080 4080 mm160.63 ''
WROLHYD POWER 4590 4590 mm180.71 ''
WROLHYD POWER 5100 5100 mm200.79 ''
WROLHYD POWER 5610 5610 mm220.87 ''
WROLHYD POWER 6120 6120 mm240.95 ''
  • Description
  • Features

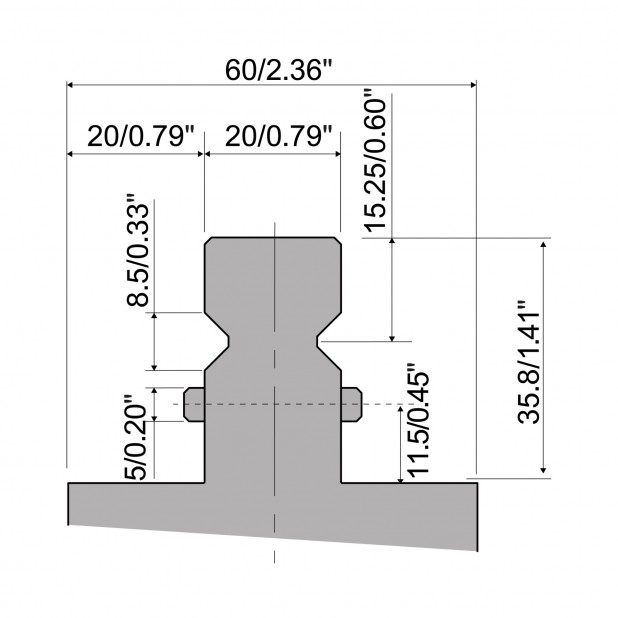

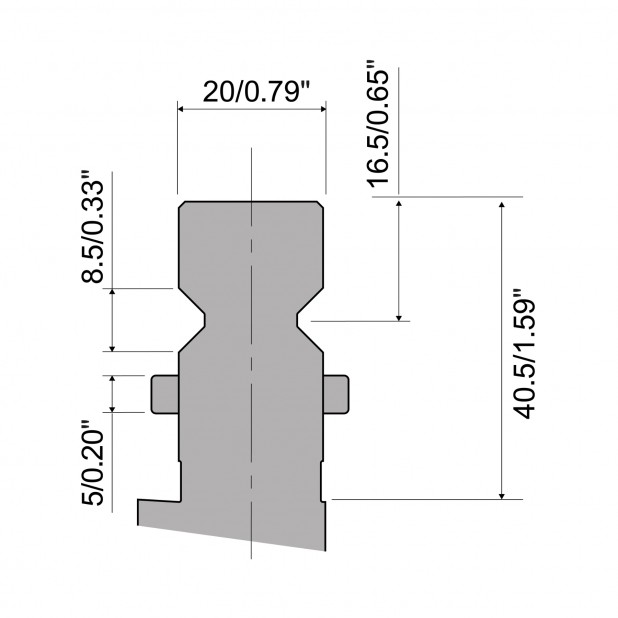

  • Attachments

Upper fast clamping system, hydraulic, in C45 hardened for R2 tools, length from 1550 to 4100 mm (61.02" to 161.42"). max load 1800 kN/m/59 US-Tons/ft head thrust and shoulder thrust

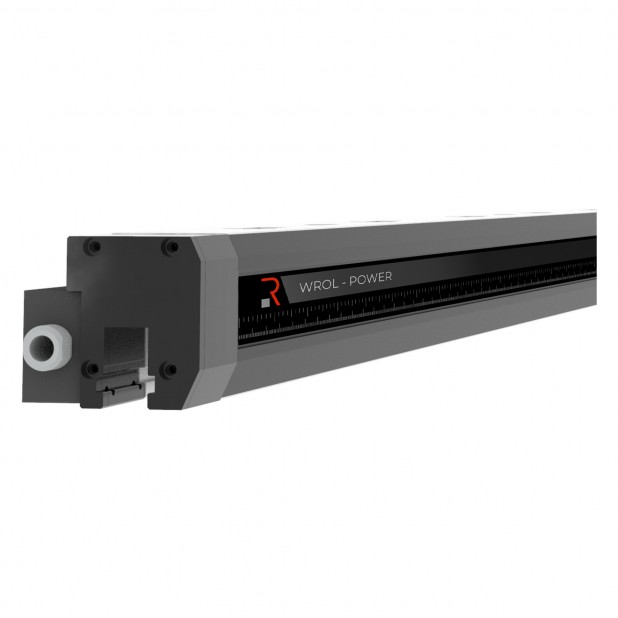

WROL clamping systems represent an evolution of R2 New Standard. They look like long beams in one solid piece with a new structural and aesthetic design. Every WROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1550mm (3.608 ft) to 4100mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to R2 New Standard and gain some daylight thanks to the limited working height of WROL being only 80mm 3.15''. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
The appearance has been improved by reducing the overall dimensions with ergonomic advantages too and by mounting LED bars for the tool positioning or for on/off signal.

On request, the WROL system is also available with R1 upper system and R1 with crowning wedge (with extra charge).

UPPER SYSTEM

WROL clamping systems are for R2 New Standard tools. They can also be used to retrofit a R1 type press brake to clamp R2 New Standard tooling.

TOOL

WROL clamping system guarantees the maximum flexibility, as punches can be mounted backward.

TOOL CHANGE

Punches with ROL1 or with Quick Lock system can be inserted vertically, whereas punches with safety pins can be slided in horizontally.

ALIGNMENT

All WROL systems seat punches automatically both if they have head thrust and shoulder thrust.

SAFETY

Equipped with the antifall system "full safety" for all R2 and R4 (W series) tooling with Quick Lock or with safety pins

SUPPLY

The system is available in pneumatic and hydraulic versions.

INSTALLATION

WROL systems can be mounted to the upper beam thanks to holes with standard pitch. TX enables any correction along the X axis. AWP and AWPC models can be easily mounted without any modification of the upper beam.
Instructions to connect the system with press brake CNC are given in the user manual.

TX

Rolleri adjustment system during installation is very useful to adjust the overall beam length.
The subsequent advantage is the correct position of the bending axis in relation to the backgauges. Thanks to this, precision and repeatability are guaranteed for any profile.

POWER UNIT: HPU-E/1

  • To be connected to CNC for open-close function
  • Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
  • Works on 220-380 volt
  • Pressure 30/80/160 BAR

WROL HYD EXTREME

Upper fast clamping system, hydraulic, in 42CrMo4 hardened for R2 tools, length from 1020 to 6120 mm (40.15" to 240.94"). max load 1800 kN/m/59 US-Ton…

WROL HYD SUPREME

Upper fast clamping system, hydraulic, in C45 hardened for R2 tools, length from 1020 to 6120 mm (40.15" to 240.94"). max load 1800 kN/m/59 US-Tons/ft…
