ROL4 MANProducts > CLAMPING SYSTEMS > ROL4 HYDROL2 MAN

SIUSC

ROL4 HYD

Article No. With intermediate Price
ROL4 HYD INT120F INT120F*
ROL4 HYD INT150F INT150F*
ROL4 HYD INT120-40F INT120-40F*
ROL4 HYD INT100 INT100
ROL4 HYD INT120 INT120
ROL4 HYD INT150 INT150
ROL4 HYD INT150-40 INT150-40
ROL4 HYD INT120HD INT120HD
ROL4 HYD INT150HD INT150HD
ROL4 HYD INT150-40HD INT150-40HD
  • Description
  • Features
  • Attachments

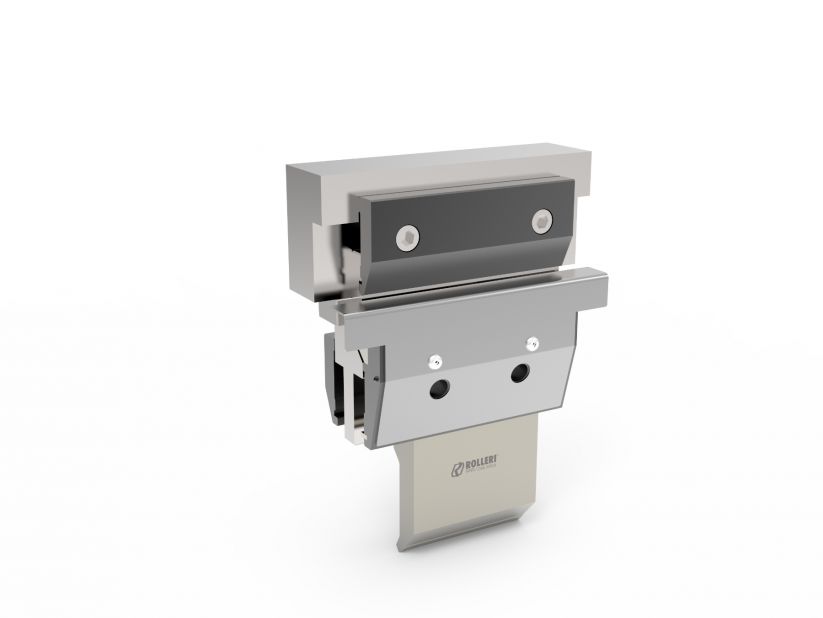

Hydraulic upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft

*without crowning wedge

ROL4 is a fast clamping system which guarantees powerful clamping and lifts and seats a punch automatically. ROL4 comes in manual and hydraulic version and with the rear clamp in every model, for clamping tool in reverse  way. The front carter is mounted directly on the clamp,  in order to protect the connections betwen intermediates as well as being aesthetically pleasant. This protection avoid any accidental collision and keep the components safe. The strong features of ROL4 are: reliability, strength and safety.

Thanks to the crowning wedge, ROL4 can compensate usual structural deformations of the press brake. A central lslotted hole allows to losen the wedge regulation screw. Its movement to the left or to the right determines a different heigth of the intermediate.

UPPER SYSTEM

ROL4 system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.

DOUBLE CLAMP

The double clamping system ensures maximum flexibility in terms of use.

TOOL CHANGE

Both Front and rear clamp allow horizontal tool change.

AUTOMATIC ALIGNMENT

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.

SAFETY

Anti-fall system “full safety” for all R1 type tools without modifications.

POWER SUPPLY

System available in hydraulic and manual version.

INSTALLATION

Its installation is quick and easy, as the system is mounted on Rolleri Standard intermediates. No press brake modification are needed.

POWER UNIT: HPU-E/1

  • To be connected to CNC for open-close function
  • Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
  • Works on 220-380 volt
  • Pressure 30/80/160 BAR

ROL200 HYD Extreme

Hydraulic upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft

ROL200 HYD Power

Hydraulic upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft
