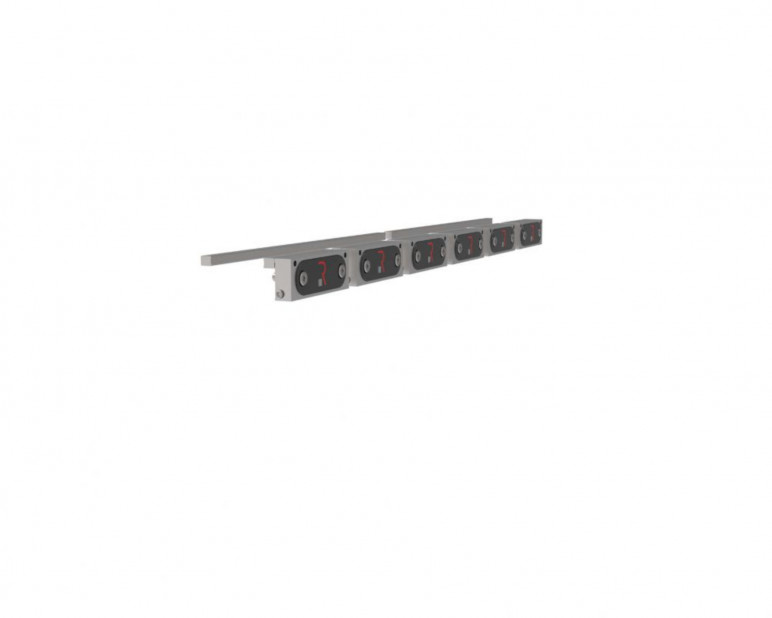

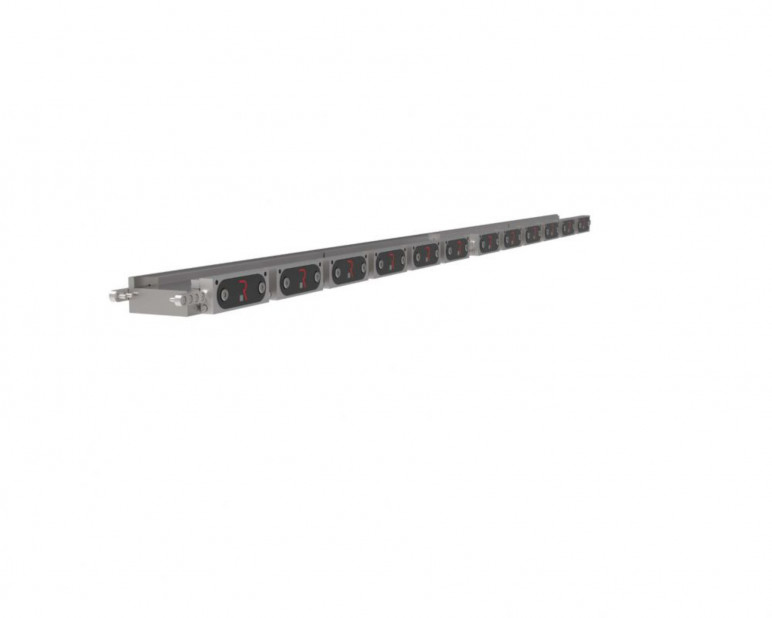

Fast lower clamping system, pneumatic, for R1 dies, length 150 mm/5.90"
|ROL2 HYD 60-C||1075 mm42.32 ''||5,50 kg12.13 lb|
|ROL2 HYD 90-C||1075 mm42.32 ''||5,00 kg11.02 lb|
|ROL2 CLAMP1 HYD||150 mm5.91 ''||31,70 kg69.89 lb|
|ROL2 CLAMP1 HYD 90||150 mm5.91 ''||23,00 kg50.71 lb|
|ROL2 CLAMP1 HYD-F||150 mm5.91 ''|
|ROL2 CLAMP1 HYD 90-F||150 mm5.91 ''|

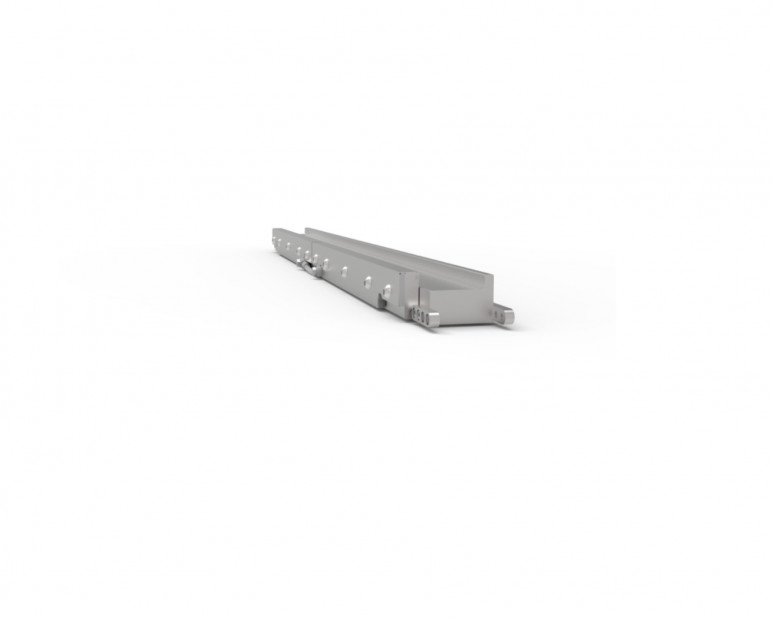

Fast lower clamping system, Hydraulic, for R1 dies, length 150 mm/5.90"
ROL2 is the best system to clamp R1 type dies with 60mm 2.36'' and 90mm 3.54'' base.
Thanks to its construction, when the clamp is closed, clamping pressure is evenly distributed along the die and guarantees its perfect alignment. The main advantage of such system consists in die V opening being automatically centered. In addition to this, tooling clamping is faster than ever. Both in case an operator uses a pneumatic, hydraulic or manual version, he can start bending after a few seconds under the safest conditions.
ROL2 has been designed to complete clamping system range for R1 type tools.
This system can be mounted in brand new press brakes as well as in already operating press brakes. ROL2 means speed, quality and flexibility.
Fast lower clamping system, manual, for R1 dies, length 150 mm/5.90"
