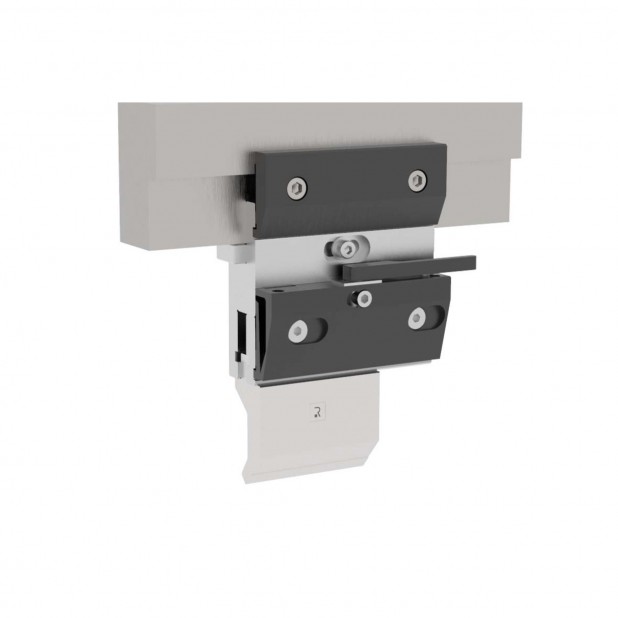

Manual upper fast clamping system, front clamp for R5 (American) and R1 tools, length 150mm/5.90". Max. Load 1000 kN/m/33 US-Tons/ft.
UNIVERSAL FAST CLAMP
|Article No.||With intermediate||Price|
Manual upper fast clamping system, front clamp with lever for R5 (American) and R1 tools, length 150mm/5.90". Max. Load 1000 kN/m/33 US-Tons/ft.
UNIVERSAL FAST CLAMP is a combination of traditional clamps with screws and with a lever. Clamps are made of a more resistant material and undergo a several treatments to increase their resistance and to avoid corrosion.
UNIVERSAL FAST CLAMP has been designed to clamp R1 and Americal style tooling. A special insert with several grooves can be moved to the front or to the back to clamp R1 or American style punches.
Clamps are opened and closed by means of a lever rotating around a central pin. One of the main features of UNIVERSAL FAST CLAMP is the adjustability of the pin. Thanks to this feature, we can always control the clamping force of punches, even in case punch tang is worn out.
UNIVERSAL FAST CLAMP can be mounted on all standard intermediates and thanks to a hardened back plate, the pin doesn't damage the intermediate as it happens in traditional clamps.
A removable lever extender can be used in order to open and close clamps easier. Such lever extender can be used to open clamps with LC shorter lever mounted on the right edge of the upper beam to avoid collision during box bending.
