Rolleri intermediates and adapters for punches

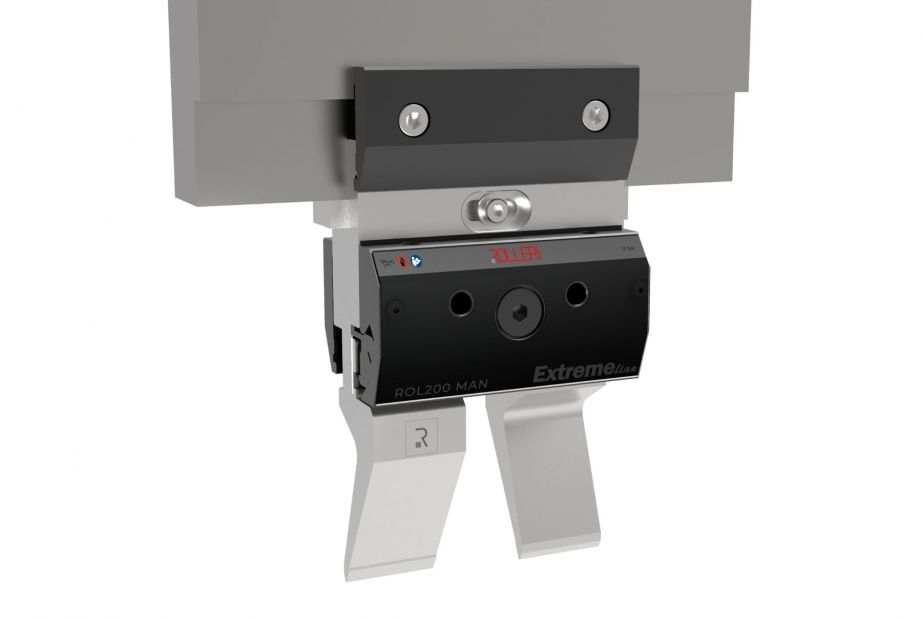

ROL200 KDS MAN Extreme
|Article No.||With intermediate||Price|
|ROL200KM Extreme INT100F||INT100F *|
|ROL200KM Extreme INT100||INT100|
|ROL200KM Extreme INT120||INT120|
|ROL200KM Extreme INT150||INT150|
|ROL200KM Extreme INT120-40||INT120-40|
|ROL200KM Extreme INT150-40||INT150-40|
|ROL200KM Extreme INT120F||INT120F*|

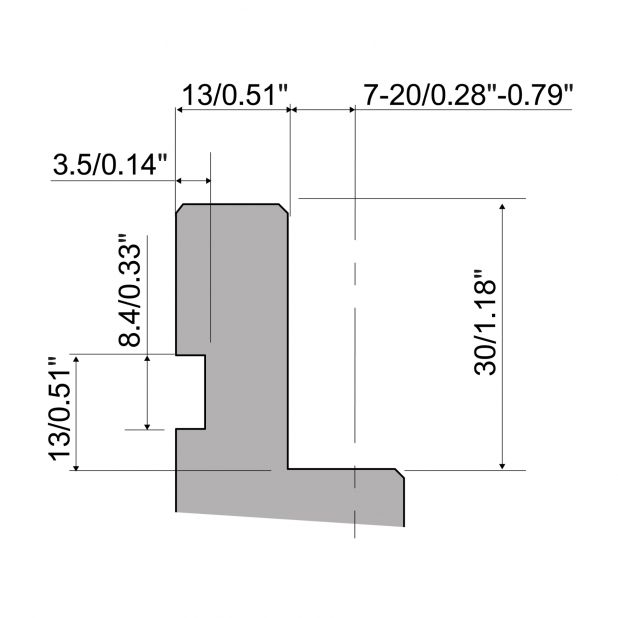

Manual upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft
* without crowning wedge
ROL200 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.
With ROL200 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.
This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.
Manual upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft
