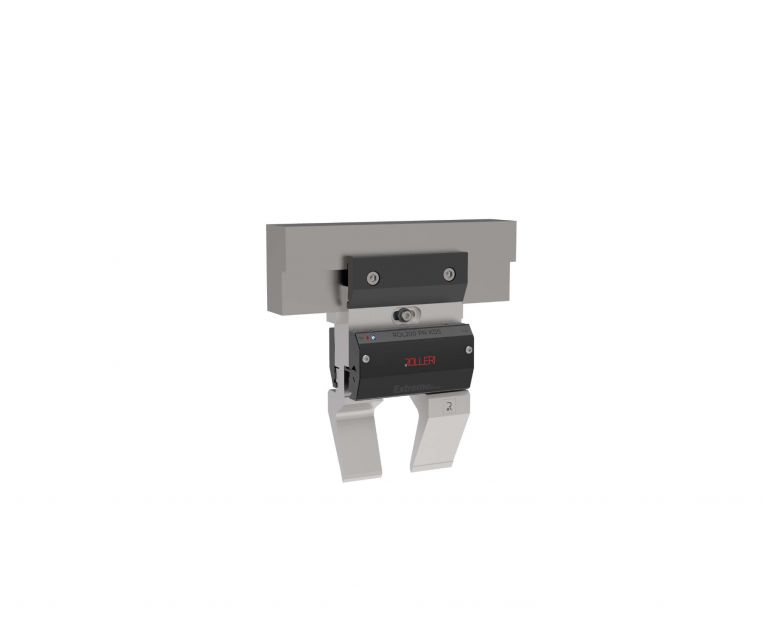

ROL200 KDS PN Extreme

Article No. With intermediate Price
ROL200KP Extreme INT100F INT100F *
ROL200KP Extreme INT120 F INT120 F *
ROL200KP Extreme INT120 INT120
ROL200KP Extreme INT150 INT150
ROL200KP Extreme INT120-40 INT120-40
ROL200KP Extreme INT150-40 INT150-40
  • Description
  • Features
  • Attachments

Pneumatic upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft

*without crowning wedge

ROL200 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.

With ROL200 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.

This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.

UPPER SYSTEM

Rol200 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.

DOUBLE CLAMP

The new ROL200 KDS merge practicality,reliability and safety of the ROL200, with the versatility of the rear clamp: the system ensures maximum flexibility in terms of use.

The double clamping system ensures maximum flexibility in terms of use.

TOOL CHANGE

Front clamp allows vertical tool change. Rear clamp allows horizontal tool change.

Tools are mounted and dismounted by a special movement wich ensures a safe anti-fall system and accelerate the tools setup operation.

AUTOMATIC ALIGNMENT

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.

SAFETY

Anti-fall system “full safety” for all R1 type tools without modifications.

POWER SUPPLY

System available in pneumatic, hydraulic and manual version.

INSTALLATION

Its installation is quick and easy, as the system is mounted on Rolleri Standard intermediates. No press brake modification are needed

POWER UNIT: PDU MOLT

  • Controls air pressure at entrance & at end of line of circuit
  • Multiplies air from compressor to ensure best clamp closure
  • Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
  • Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
  • TOP VERSION available, with a resistant protective case

ROL200 PN Power

Pneumatic upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft

ROL200 PN Extreme

Pneumatic upper fast clamping system with front clamp for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft
