Rolgrip Star

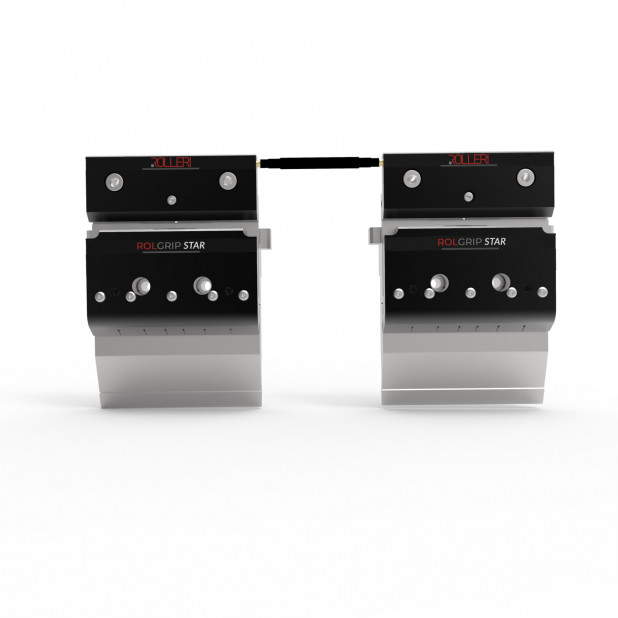

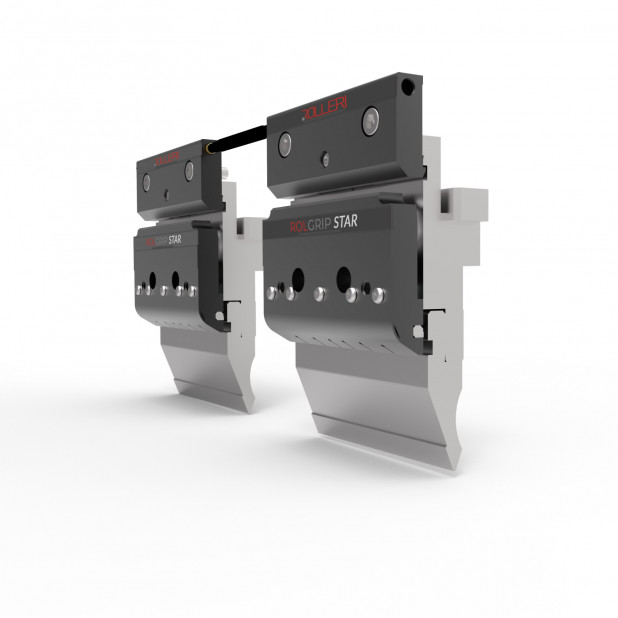

With STAR SYSTEM, the intermediate modules that lock the tools are totally free from the connections necessary for the transmission of compressed air: inside the STAR clamp a particular system allows the passage of compressed air only when the clamp “recognizes” a suitable automatic module.

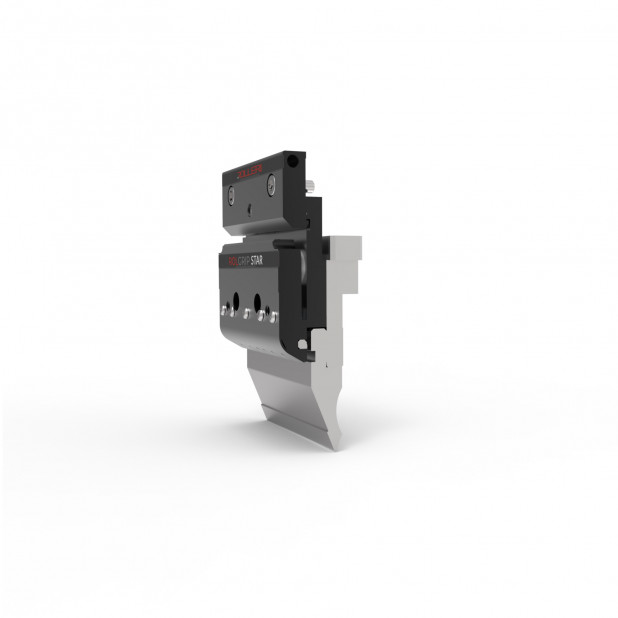

In the event that the STAR bracket has to block any other element (special tool, manual intermediate etc …) there is no emission of air and the bracket behaves like a normal manual bracket.

  • Description
  • Features
  • Attachments

Automatic pneumatic clamping system for upper tools

UPPER TOOLS

Automatic pneumatic clamping system for upper tools

FLEXIBILITY

Upper bracket 13401-A-ST “STAR SYSTEM” (TEDA patent) energy connection system essential for the functioning of the system allows you to completely remove one or more units in any machine position, guaranteeing total flexibility of tooling.

FRONTAL LOADING

FRONTAL introduction / extraction of the standard European type tool and automatic return at the stop.

TECNICAL FEATURES

Unit height = 100mm.
Bending axis = 7mm.
Also available for 20mm axis.

POWER

Energy connection through patented “STAR SYSTEM”.
NO PRESENCE OF PIPES in the work area and free removal of modules immediately in any position.

DUAL ORIENTATION

Possibility of fitting tools on the rear side of the clamping units by bracket mod. 11008 (manual clamping) not included in the supply
