ROL3/2 PN
| Article No. | Length | Price | |
|---|---|---|---|
| ROL3/2 PN | On request |
|
- Description
- Features

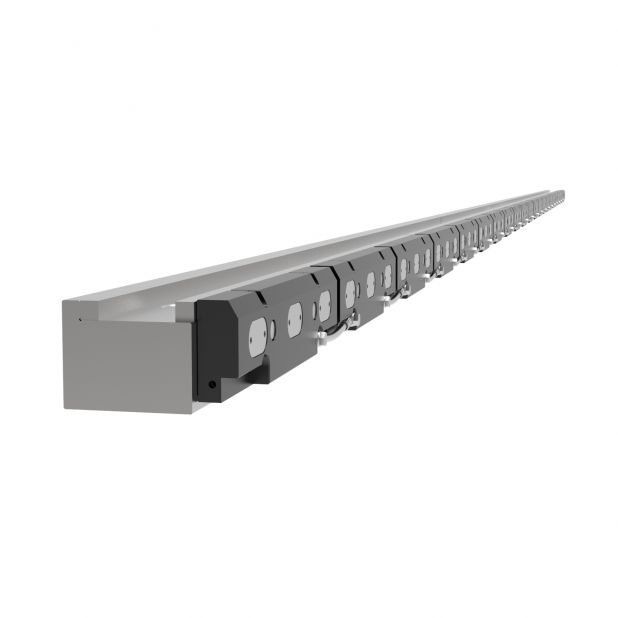

Pneumatic lower fast clamping system in C45 and 42CrMo4 for Colly, Axjal, Eht, Weinbrenner and Promecam base 60-90 mm (2.36"-3.54") mm (2.36"-3.54") dies(Heavy duty). Length from 1100 to 6100 mm (43.30" to 240.16"). Max. load 300 kN/m/10 US-Tons/ft./m.
ROL3/2 lower clamping systems are an evolution of clamping systems for Colly, EHT, Weinbrenner and other standard dies. They are made in one solid piece with a new structural and aesthetic design. Every ROL3/2 undergoes heating treatment to give proper hardness to the contact surfaces with tooling. Several lengths are available from 1100mm (3.608 ft) to 6100mm (20.131 ft) for any press brake. ROL3/2 installation along the axis is guaranteed by TX adjustment.
The appearance has been improved by reducing the overall dimensions with ergonomic advantages too
LOWER SYSTEM

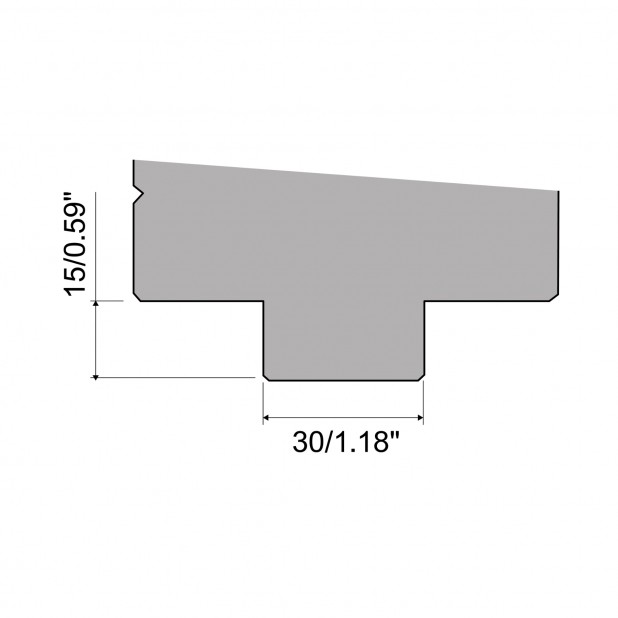

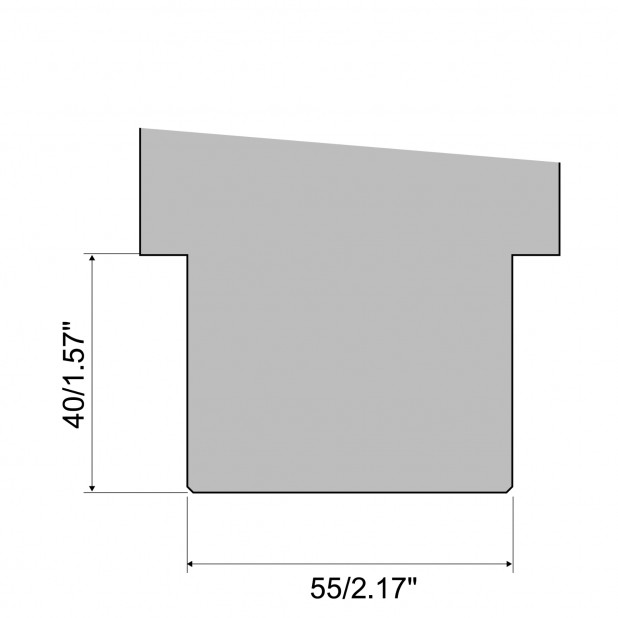

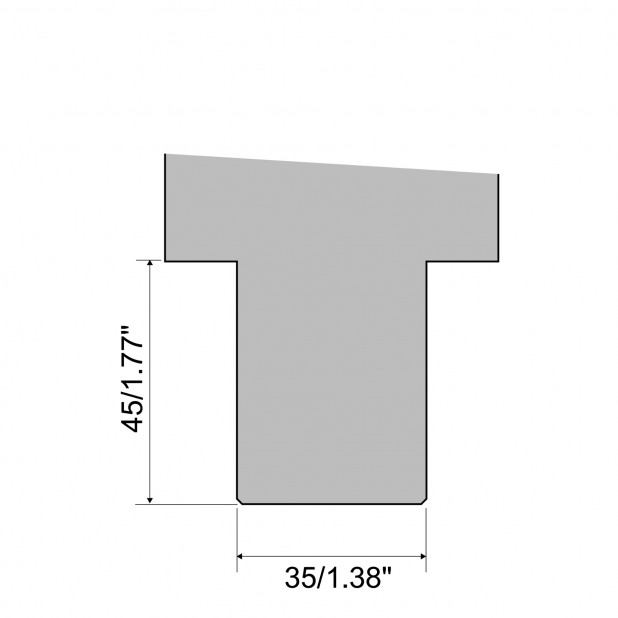

ROL3/2 lower clamping systems are for Colly, Axial, EHT and Weinbrenner dies and heavy duty Promecam applications with base 60mm and 90mm
SUPPLY
The system is available in pneumatic and hydraulic versions.
INSTALLATION
ROL3/2 systems can be mounted onto a press brake table with holes and screws. During the design phase, Rolleri technicians prepare a product drawing.
In order to mount only clamps directly to a table, the original hole pitch is used.
Instructions to connect the system to press brake CNC are given in the user manual.
POWER UNIT: PDU MOLT
- Controls air pressure at entrance & at end of line of circuit
- Multiplies air from compressor to ensure best clamp closure
- Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
- Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
- TOP VERSION available, with a resistant protective case
