UNIVERSAL EASY CLAMP
| Article No. | With intermediate | Price | |
|---|---|---|---|
| UE 100A | INT100A |
|
|
| UE 100A-American | INT100A-American |
|
|
| UE 120-40A | INT120-40A |
|
|
| UE 120A | INT120A |
|
|
| UE 120A-American | INT120A-American |
|
|
| UE 150A | INT150A |
|
|
| UE 150A-American | INT150A-American |
|
- Description
- Features
Manual upper fast clamping system, front clamp for R5 (American) and R1 tools, length 150mm/5.90". Max. Load 1000 kN/m/33 US-Tons/ft.

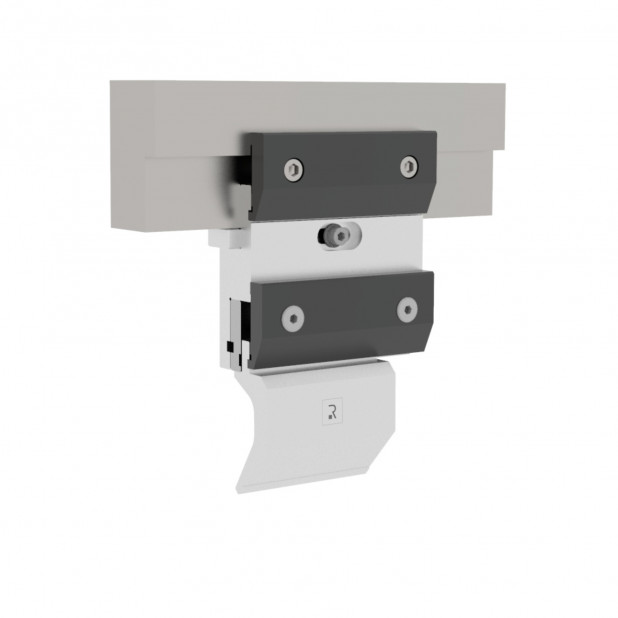

UNIVERSAL EASY CLAMP is the simplest system and it's considered standard for tools with R1 and American tangs.
A special insert with several grooves can be moved to the front or to the back to clamp R1 or American style punches.
Intermediates vary a lot ranging from 3.94'' (100mm) to 4.72'' (120mm). They may also have 2 different bending axis: Z1 at 0.28'' (7mm) and Z2 at 0.79'' (20mm) from the tang. Each intermediate can be used with ST60 standard clamp.
UNIVERSAL EASY CLAMP is equipped with a crowning wedge. By releasing the central screw and moving it to the left or to the right, crowning wedge is moved and intermediate height adjusted.
UPPER SYSTEM
UNIVERSAL EASY CLAMP is compatible with all press brakes with American and Amada-Promecam tang. No tooling modification is required.
FRONT CLAMP
UNIVERSAL FAST CLAMP is available with front clamp only
TOOL CHANGE
ST60 clamps are opened and closed with screws and enable horizontal tool change.
ALIGNMENT
Punches are aligned manually or by simulating a bending process without sheet metal so that punch presses in the die V opening. Afterwards you can tighten clamp screws.
SAFETY
Screw driven clamps guarantee safe tool clamping even in manual mode.
A special optional polyurethane insert clamps better sectioned tools.
SUPPLY
The system is available in manual version.
It's a complete, manual, fast and convenient clamping system.
INSTALLATION
UNIVERSAL EASY CLAMP is designed for a press brake with 1.97'' (50mm) distance between intermediates. Installation is easy and intuitive. In order to install intermediates with wedges properly, check the press brake user manual to adjust the height to compensate the upper beam deformation.
