|ROL TA R2 1530||1530 mm60.24 ''|
|ROL TA R2 2040||2040 mm80.32 ''|
|ROL TA R2 2380||2380 mm93.7 ''|
|ROL TA R2 2550||2550 mm100.39 ''|
|ROL TA R2 3060||3060 mm120.47 ''|
|ROL TA R2 3655||3655 mm143.9 ''|
|ROL TA R2 4080||4080 mm160.63 ''|
|ROL TA R2 4250||4250 mm167.32 ''|
|ROL TA R2 5100||5100 mm200.79 ''|

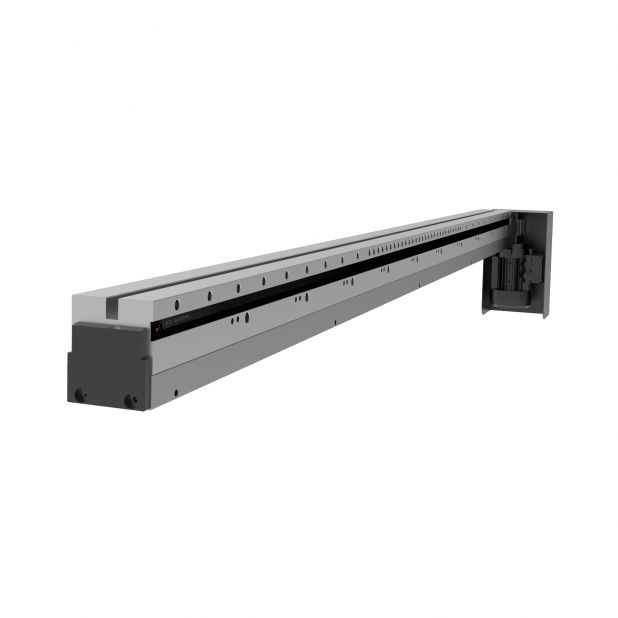

Motorized crowning table in C45 hardened and ground, for R2-R3-R4-R5 dies. max.Load 2000 kN/m/66 US-Tons/ft.
Crowning tables enable mechanical compensation of any press brake deflection. Such deflection is directly proportional to bending length and to the ratio between sheetmetal thickness and die V opening.
Rolleri crowning table is composed of a bar made of special steel opposite to a wedge row.
Each wedge can be individually set to compensate better small working areas.
The bar can be activated manually or automatically thanks to a motoreducer connected to press brake CNC.
Crowning table setup is very simple and fast.
Every table is manufactured according to press brake features in order to improve its activity and integration with a press brake.
Rolleri offers several table versions according to the tang of dies to be clamped.
