ROL3 PNProducts > CLAMPING SYSTEMS > ROL3 MANROL3/2 HYD

SIUSC

ROL3 MAN

Article No. Price
ROL3 MAN
  • Description
  • Features

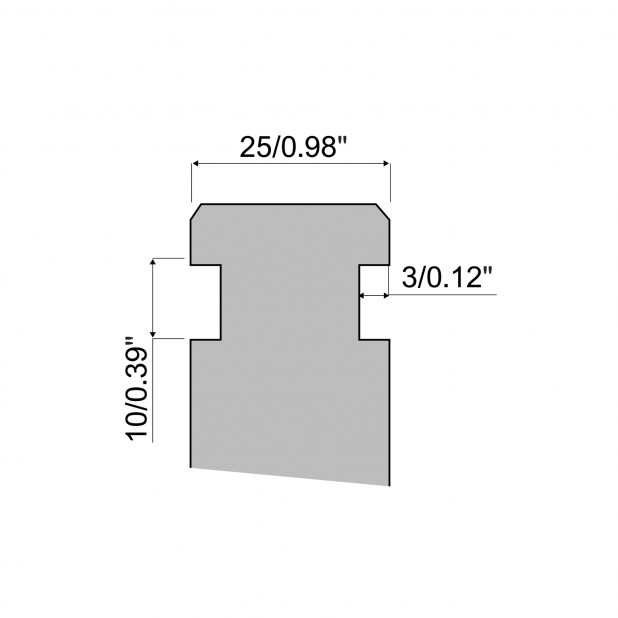

  • Attachments

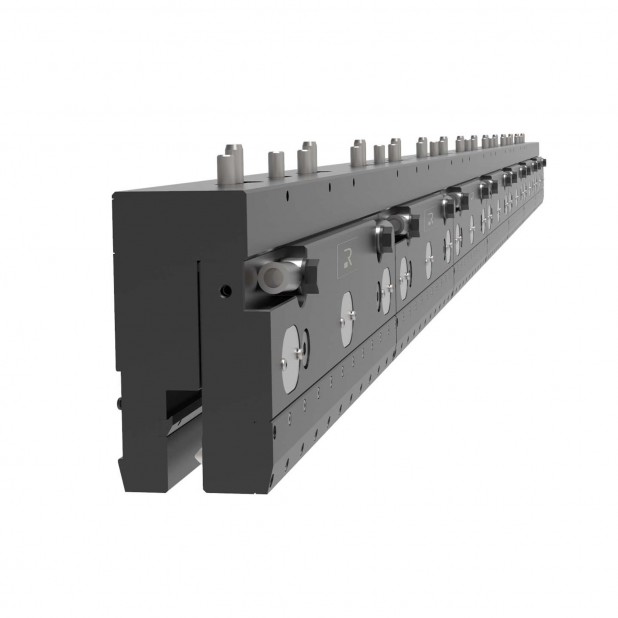

Pneumatic upper fast clamping system in C45 and 42CrMo4 for R3-R7-R8-R10-RX tools, length from 500 mm/19.68".

ROL3 clamping systems represent the widest range for any type of press brake.
They are complete systems with clamps and beam and they can be pneumatic or hydraulic. Dimensions and length are taylor made according to the press brake upper beam. ROL3 is suitable for heavy duty jobs and for high tonnage, like 5000kN/m up to 10000 kN/m.
The material used for main frame and all components are FEM calculated to guarantee safety.
This solution is quick, handy and convenient.

UPPER SYSTEM

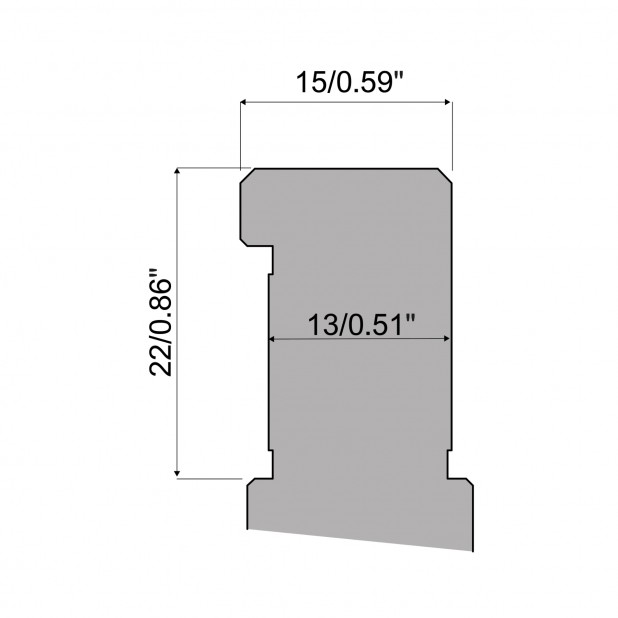

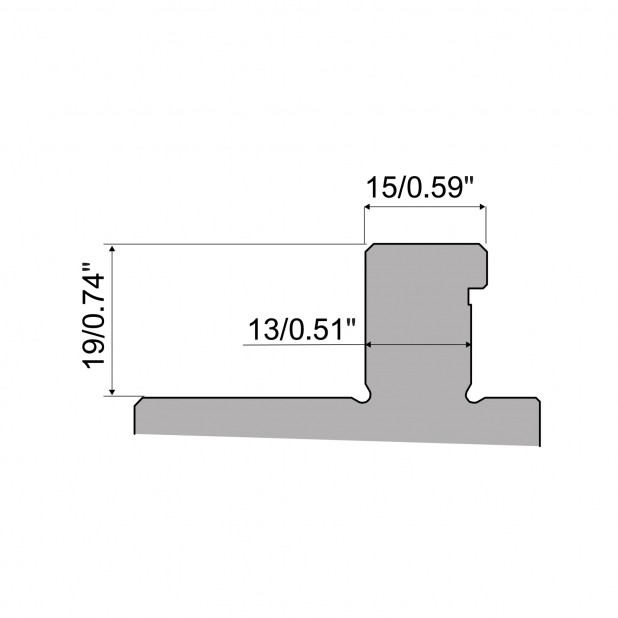

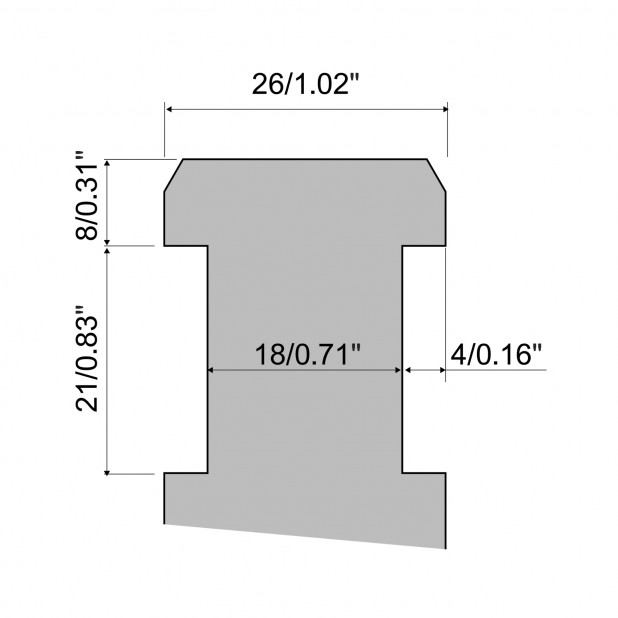

ROL3 clamping system can be produced for LVD, Bystronic
Beyeler RFA-RF-R-S, Colly, Colgar, Ajial-Axial, EHT and Ursviken press brakes.

TOOL CHANGE

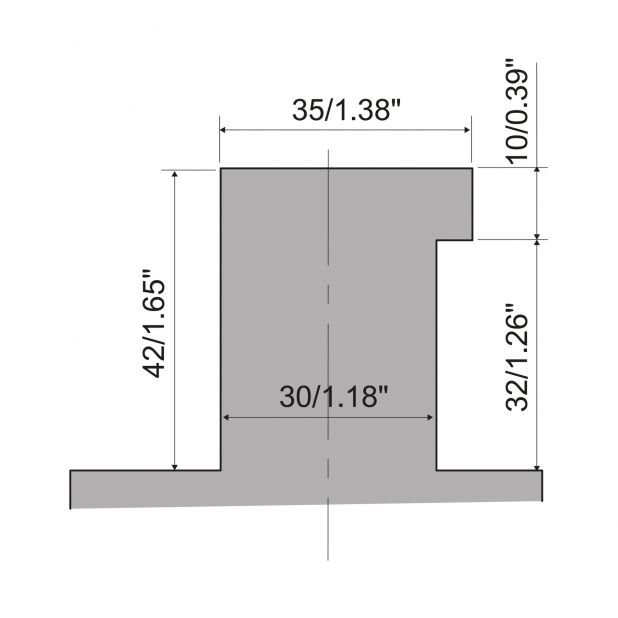

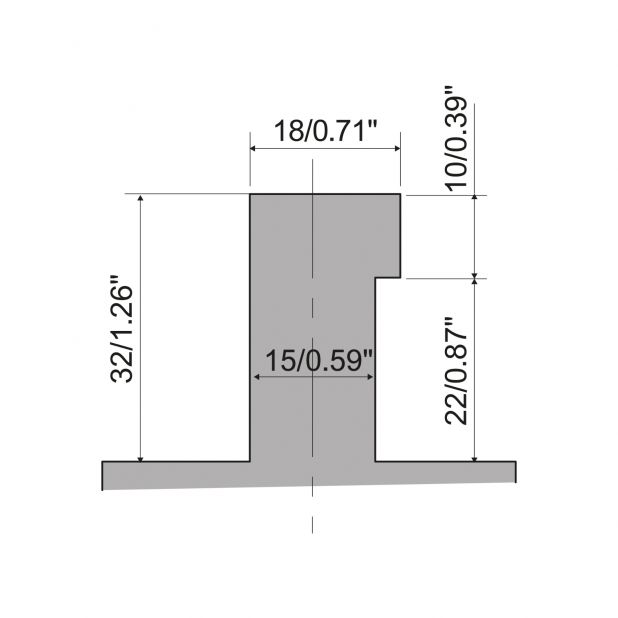

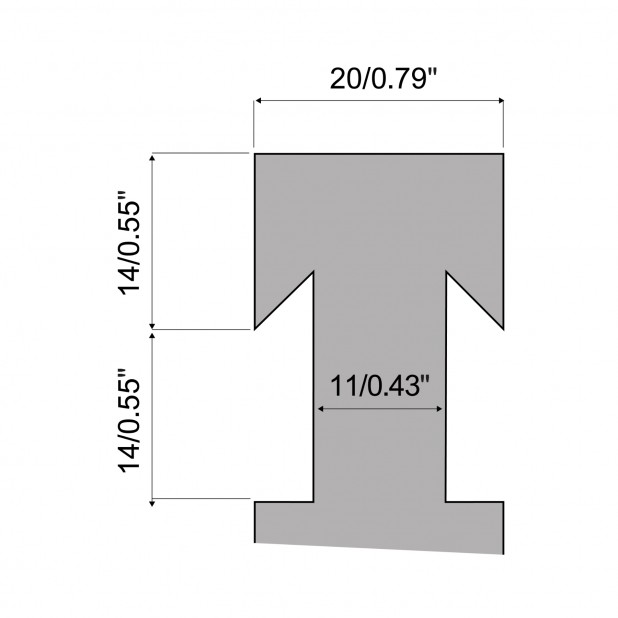

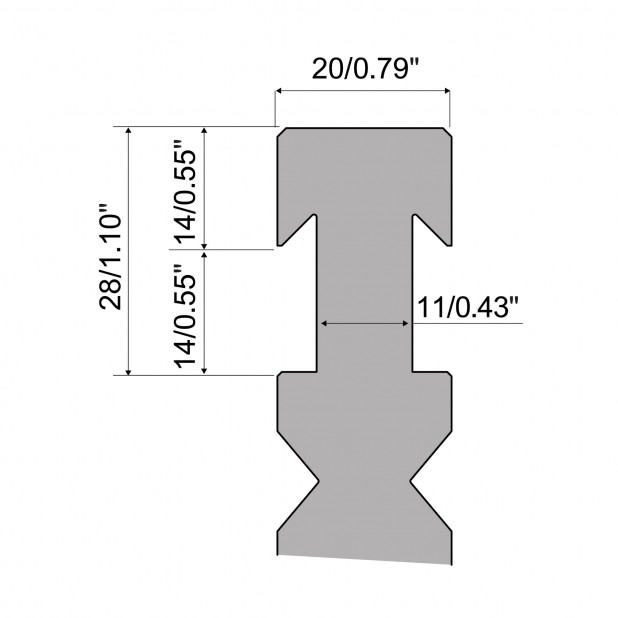

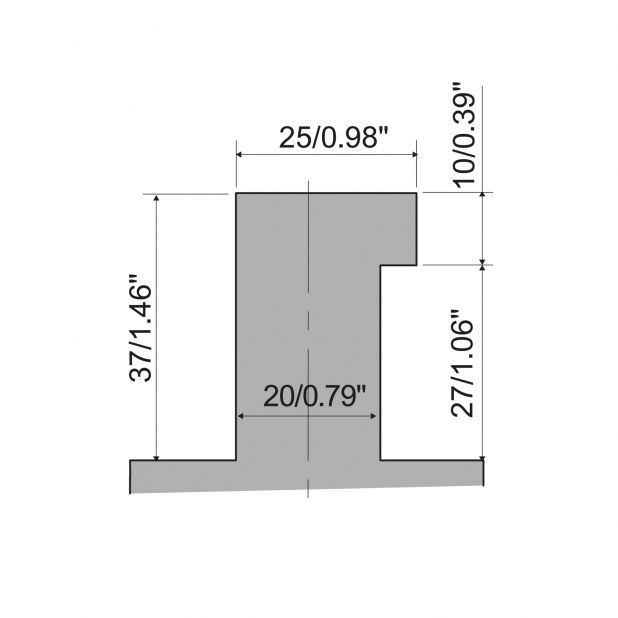

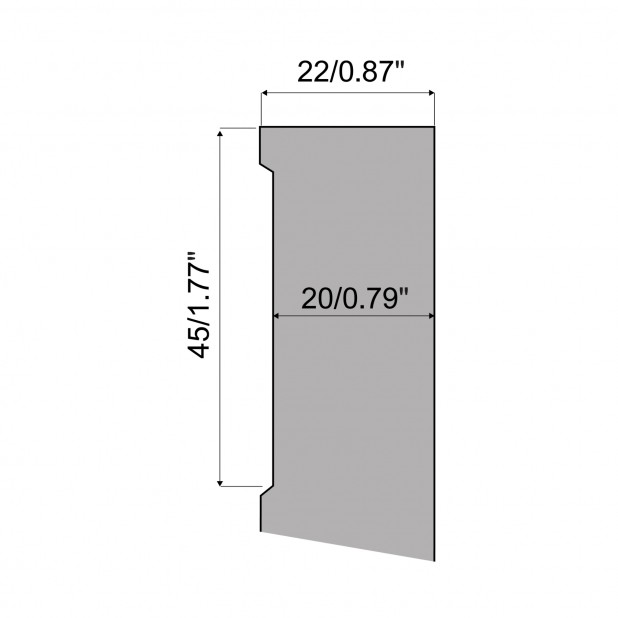

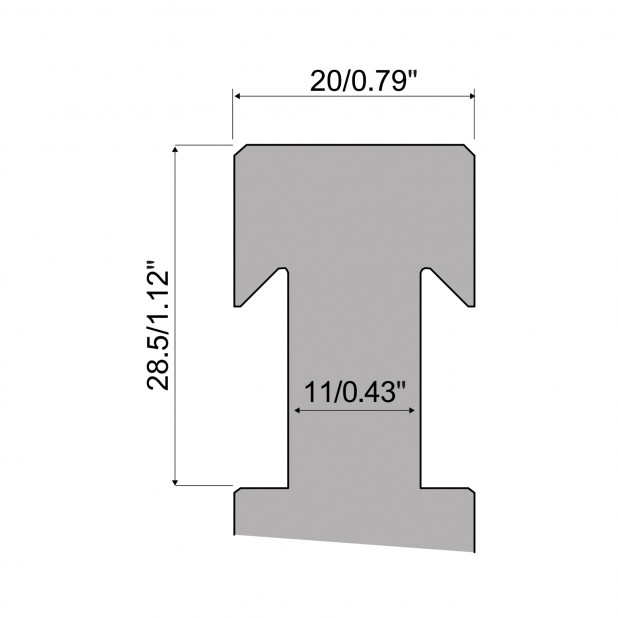

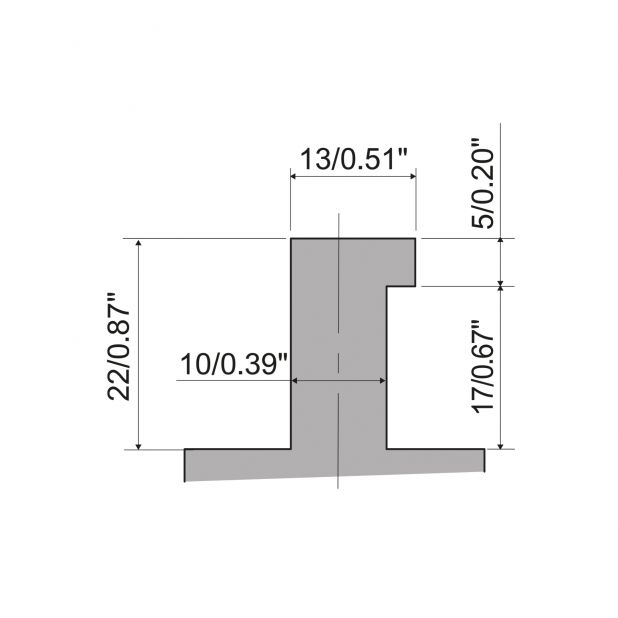

Punches type R3 RFA, RF and R can be inserted vertically, whereas punches type R3 S, R4 and R5 can be slided in horizontally.

ALIGNMENT

Most R3 clamping systems can lift and seat punches automatically.

SUPPLY

The system is available in manual, pneumatic and hydraulic versions.

INSTALLATION

ROL3 systems can be mounted to an upper beam with holes and screws. During the design phase, Rolleri technicians prepare a product drawing.
In order to mount only clamps directly to an upper beam, the original hole pitch is used.
Instructions to connect the system to press brake CNC are given in the user manual.

ROL3 HYD

Hydraulic upper fast clamping system in C45 and 42CrMo4 for R3-R7-R8-R10-RX tools, length from 500 mm/19.68".

ROL3 PN

Pneumatic upper fast clamping system in C45 and 42CrMo4 for R3-R7-R8-R10-RX tools, length from 500 mm/19.68".
