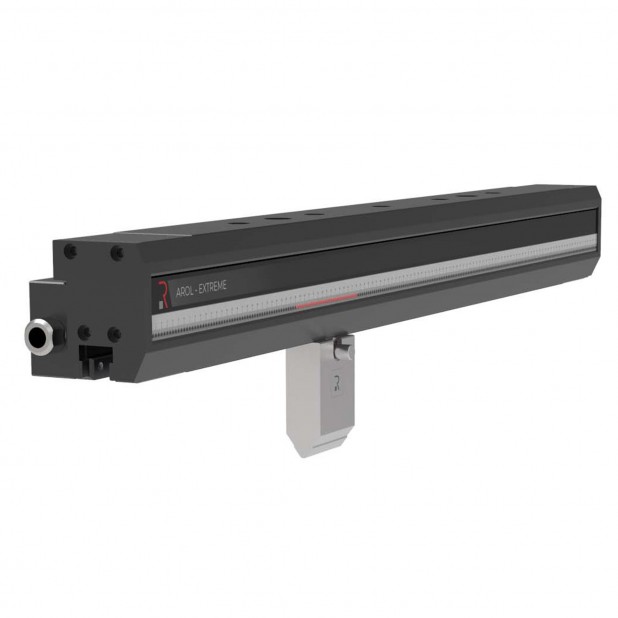

AROL HYD EXTREME

Article No. Length Price
AROL HYD Ext. 1219.2 1219.2 mm48 ''
AROL HYD Ext. 1828.8 1828.8 mm72 ''
AROL HYD Ext. 2438.4 2438.4 mm96 ''
AROL HYD Ext. 3048 3048 mm120 ''
AROLHYD EXTREME.2380 2380 mm93.7 ''
AROL HYD Ext. 3657.6 3657.6 mm144 ''
AROL HYD Ext. 4267.2 4267.2 mm168 ''
AROL HYD Ext. 4876.8 4876.8 mm192 ''
AROL HYD Ext. 5486.4 5486.4 mm216 ''
AROL HYD Ext. 6096 6096 mm240 ''
  • Description
  • Features

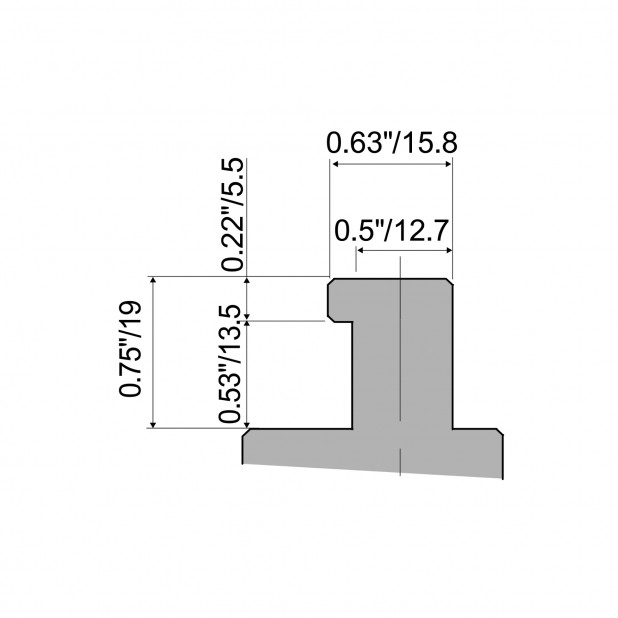

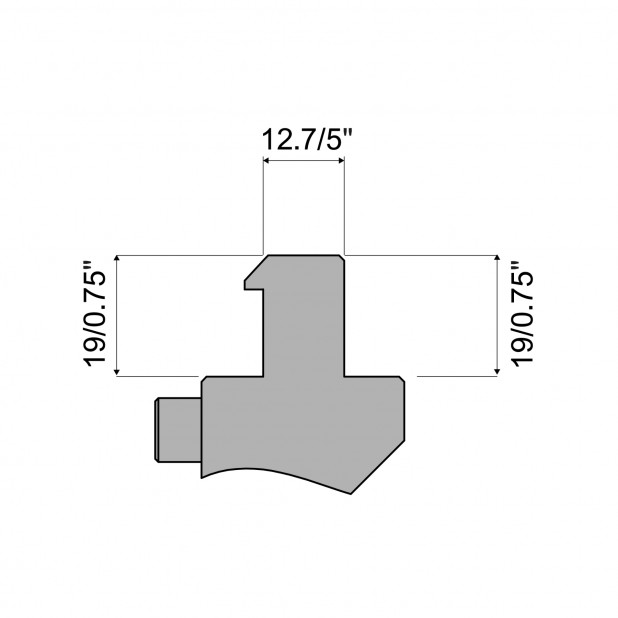

  • Attachments

Upper fast clamping system, Hydraulic, in 42CrMo4 hardened for R5 (American) tools, length from 1219.2 to 6096 mm (48" to 240"). max load 2500 kN/m/82.5 US-Tons/ft. shoulder thrust

AROL systems represent an evolution of American clamping systems. They look like long beams in one solid piece with a new structural and aesthetic design. Every AROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1219.2mm (3.608 ft) to 6096mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to clamp American type tools and gain some daylight thanks to the limited working height of AROL being only 80mm 3.15''. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
The appearance has been improved by reducing the overall dimensions with ergonomic advantages too and by mounting LED bars for the tool positioning or for on/off signal.

UPPER SYSTEM

AROL clamping systems are for American style tooling.

TOOL

AROL clamping system guarantees the maximum flexibility, as punches can be mounted backward.

TOOL CHANGE

Punches with Quick Lock system can be inserted vertically, whereas punches with safety groove can be slided in horizontally.

ALIGNMENT

AROL systems guarantee perfect alignment along X axis.
Punches with Quick Lock are lifted and seated automatically on the shoulders.

SAFETY

AROL guarantees maximum safety for all punches with Quick Lock and with antifall groove. To clamp punches with straight tang (without Quick Lock or safety groove), we recommend to slide them horizontally using dies as support.

LED BARS

The system is equipped with a led bar for the correct tool positioning.

SUPPLY

The system is available in pneumatic and hydraulic versions

TX

Rolleri adjustment system during installation is very useful to adjust the overall beam length.
The subsequent advantage is the correct position of the bending axis in relation to the backgauges. Thanks to this, precision and repeatability are guaranteed for any profile.

INSTALLATION

AROL systems can be mounted to an upper beam thanks to holes with standard pitch. TX enables any correction along the X axis.
Instructions to connect the system to press brake CNC are given in the user manual.

POWER UNIT: HPU-E/1

  • To be connected to CNC for open-close function
  • Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
  • Works on 220-380 volt
  • Pressure 30/80/160 BAR
