Special horns and sectionings

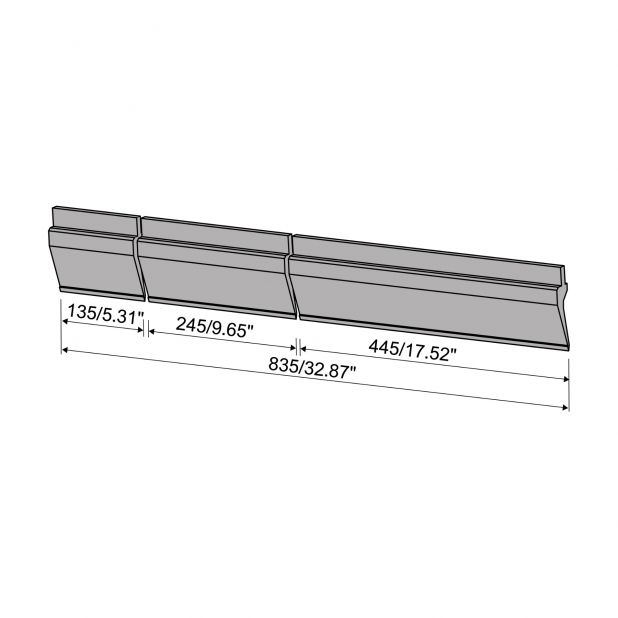

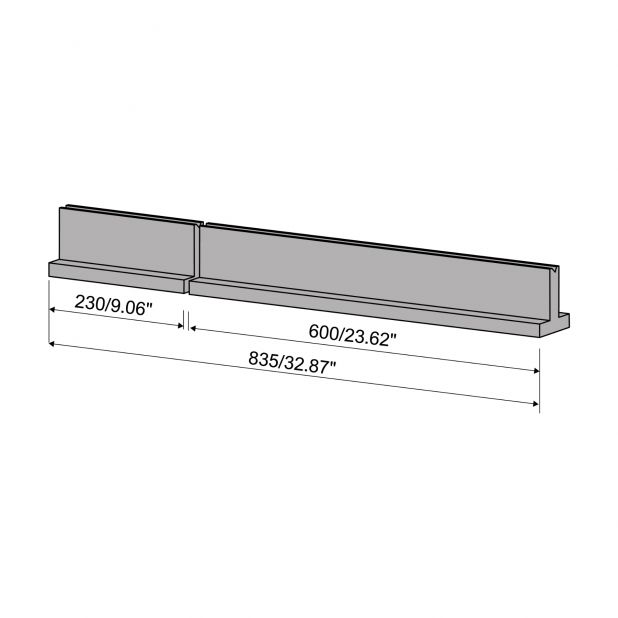

SPECIAL SECTIONINGS
There are many types of standard sectionings but it is possible to obtain specific sections according to your needs. The tools, after the cutting phase, pass to the grinding phase to guarantee a perfect coupling between the divided pieces
- Individual sectioning of your punches and dies
- Every cut wastes about 5 mm (0.19") material
- Production according to your specifications

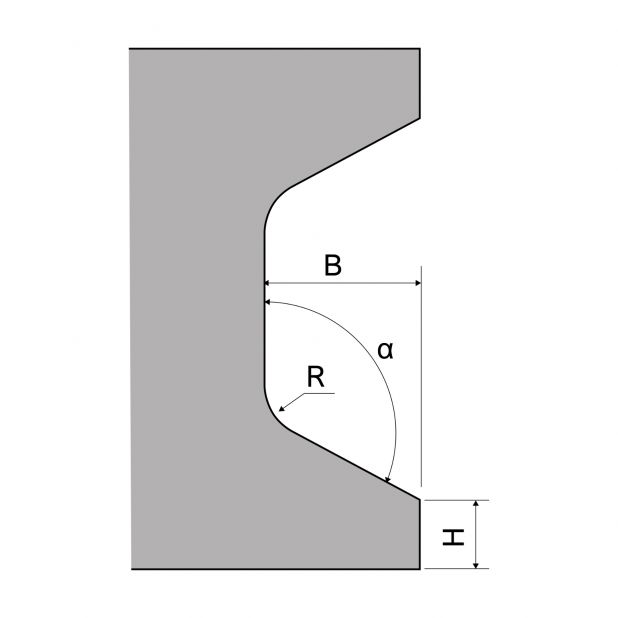

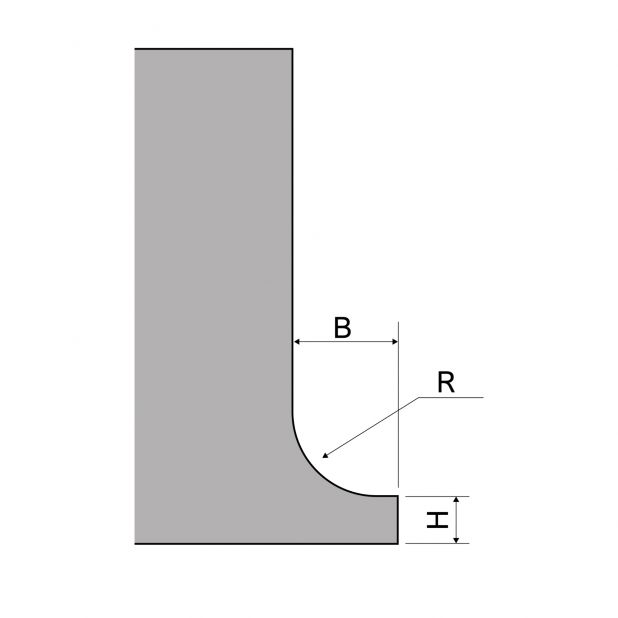

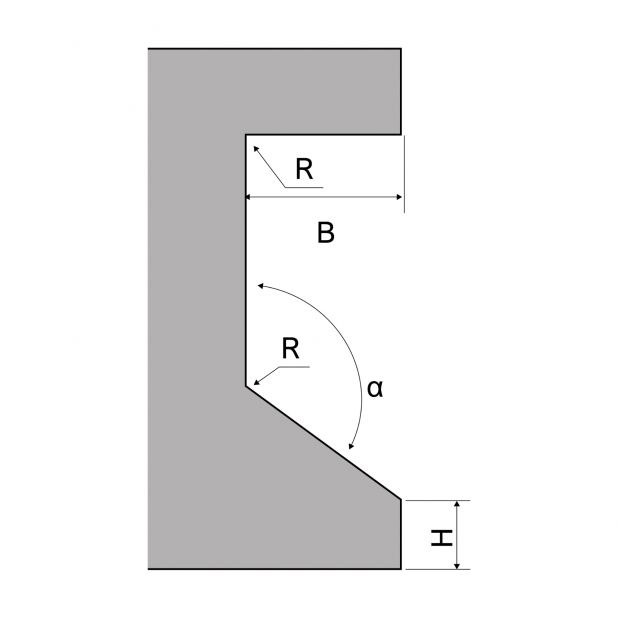

SPECIAL HORNS
Horns are always right and left. They can have different shapes, lengths and depths. The B and H dimensions combined together also determine the tool load in that point and the level of deflection of the tip.
- Individual horn pieces on punches and dies
- On one or both sides
