T-UP EL R1100 | EXTREME LINE
|T-UP EL R1100 M5-M24||6 bushes from M5 to M24|
|T-UP EL R1100 M5-M30||6 bushes from M5 to M30|

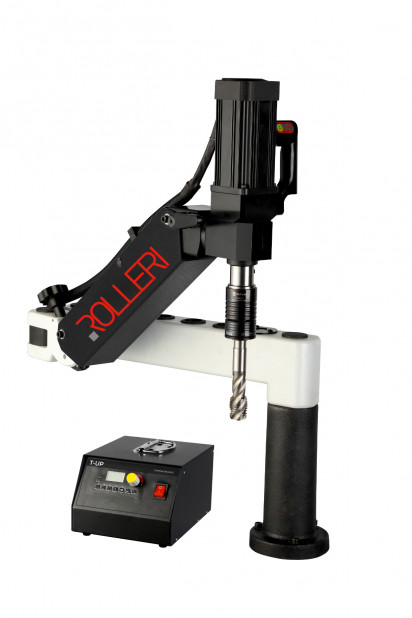

Electric threading machine with working area = 1100mm/43.30", 6 bushes, head for vertical and horizontal movement.
- Arm designed to guarantee high stability and precise alignment of the holes;
- The 1.2 kw servo motor provides strong power for a torque of 250-270 N.M ensuring continuous tapping;
- The head allows 90 ° movement for vertical and horizontal tapping;
- The base is adjustable in height from 40-60mm allowing a wide and effective working range;
- The special control system of this T-UP model allows the setting of depth, speed and repetitiveness making it easy to use even for less experienced operators.
