MSA - magnet
Extremely versatile and flexible magnetic bracket
SIUSC
TMR150.20.86
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| TMR150.20.86.500 | 500 mm19.69 '' | 18.20 kg40.12 lb |
|
|

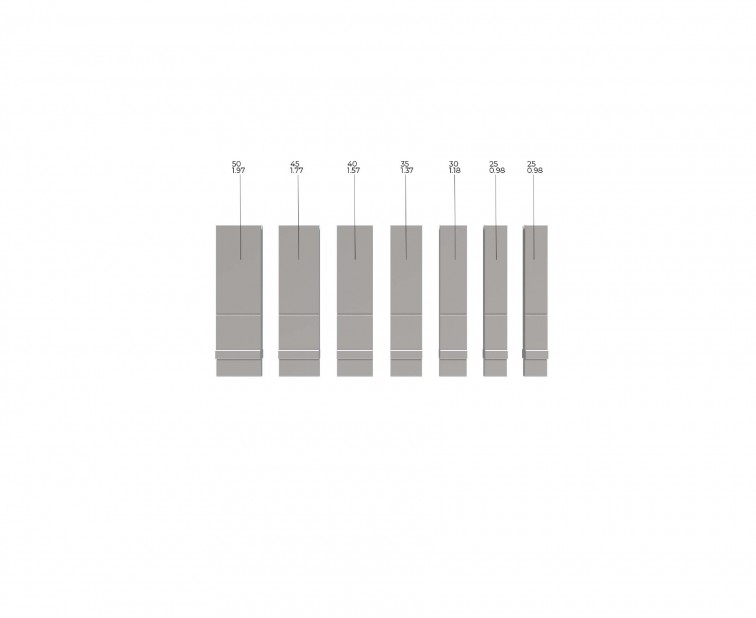

| TMR150.20.86.250s.FC | 250 mm9.84 '' FC | 9.10 kg20.06 lb |
|
|

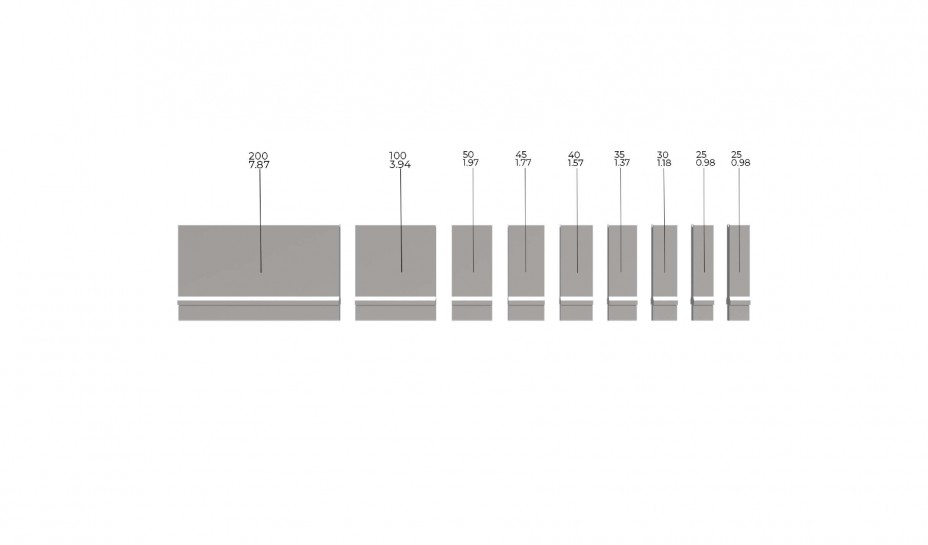

| TMR150.20.86.550s.FW | 550 mm21.65 '' FW | 20.00 kg44.09 lb |
|
- Description
- Features

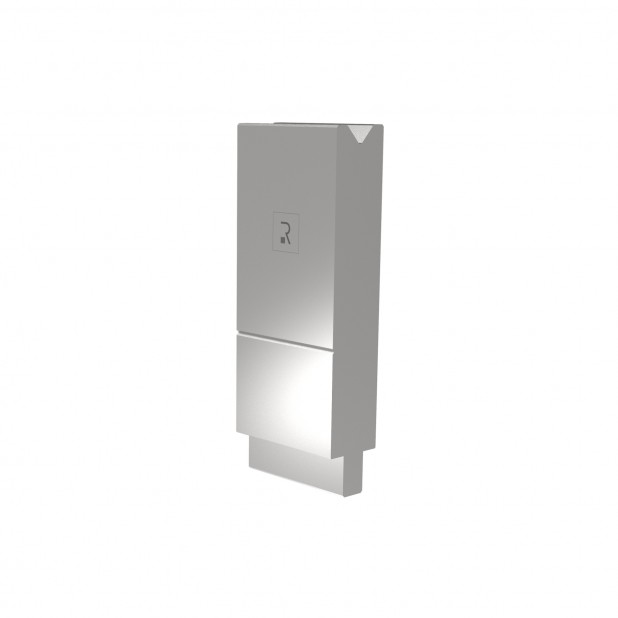

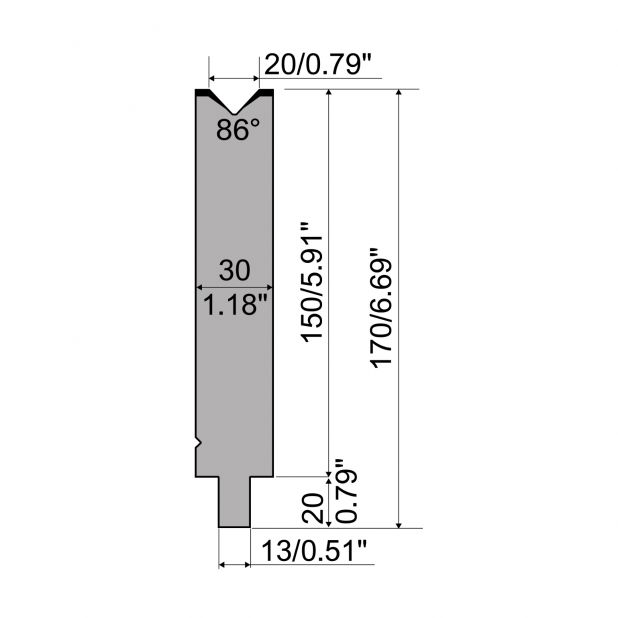

Die R2 type with working height=150mm/5.91", α= 86°, radius=2mm/.079, material=42Cr Max. Load=1000Ton/mtr - 23 US-Ton/ft
