ROL300 PNEUMATIC

Article No. Length With intermediate Price
ROL300 INT100 150 mm5.91 '' Intermediate H=100mm
ROL300 INT120 Intermediate H=150mm
ROL300 INT150 Intermediate H=150mm
  • Description
  • Features
  • Attachments

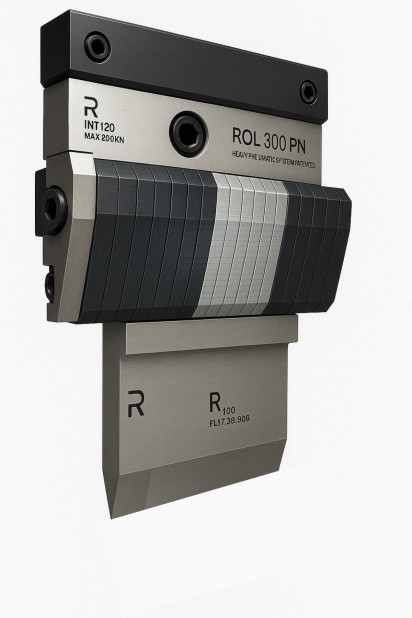

A rapid pneumatic locking system for R1-European style punches. Very easy release, recall of the tools in the stop. Thanks to the bracket composed of independent 5mm blades, a very good locking of the fractionated tools can be obtained. Very high locking force.

The Power line was created with the aim of providing a single rapid clamping system capable of managing two different power supplies.
With the ROL300 Power we can control the movement of the clamps both pneumatically and hydraulically using the same system as all connections and components are standardized to offer a simple, safe and economic solution.

ROL300 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.

With ROL300 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.

This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.

UPPER SYSTEM

Rol300 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.

TOOL CHANGE

The front clamp allows a quick, vertical tool change.

Tools are mounted and dismounted by a special movement wich ensures a safe anti-fall system and accelerate the tools setup operation.

AUTOMATIC ALIGNMENT

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.

SAFETY

Anti-fall system “full safety” for all R1 type tools without modifications.

POWER SUPPLY

System available in pneumatic and hydraulic version, without changing components.



POWER UNIT: PDU MOLT

  • Controls air pressure at entrance & at end of line of circuit
  • Multiplies air from compressor to ensure best clamp closure
  • Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
  • Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
  • TOP VERSION available, with a resistant protective case

INT100

Intermediate R1 Type with Working height= 100mm/3,94in, , Material= C45, Max. load= 100 Ton/m, 33 US-Ton/ft.

ROL200 KDS PN Extreme

Pneumatic upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm/5.90" length. Max. load 1000 kN/m/33 US-Tons/ft
